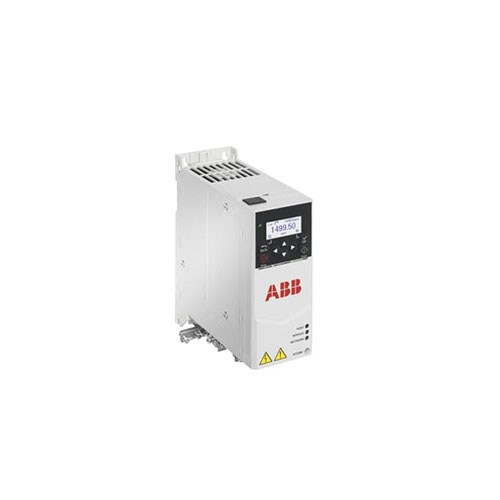

ABB 3AXD50000031888_S Variable Speed Machinary Drive 1.1kW 2.6A IP20 3PH

Product Code: 3AXD50000031888_S

  • Compact size: 70mm width, 223mm height
  • Operates at 380-480 VAC, 2.6 A
  • IP20 protection for indoor use
  • Includes control unit & PC connection
  • Rated power of 1.1 kW
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Variable Speed Machinary Drive
Brand ABB
Series ACS380
Degree of Protection IP20
Depth 176 mm
Frame Size R1
Height 223 mm
Includes Control Unit, PC Connection
Number of Analogue Inputs 2
Number of Digital Inputs 5
Number of Digital Outputs 2
Number of Hardware Interfaces 3
Number of RS-485 Interfaces 1
Phase 3
Rated Current 2.6 A
Rated Frequency 47.5/63 Hz
Rated Power 1.1 kW
Rated Voltage 380-480 VAC
Width 70 mm
