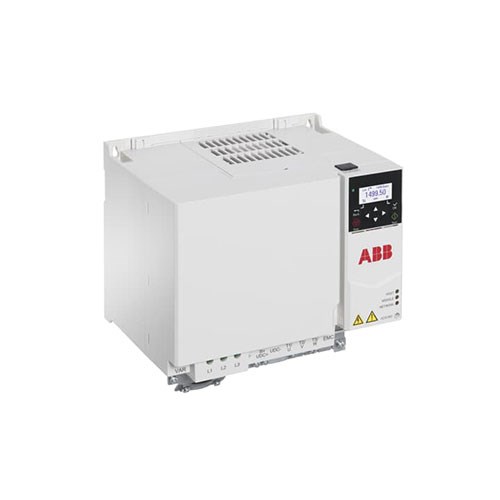

ABB 3AXD50000162222_S Variable Speed Machinary Drive 22kW 45A IP20 3PH

Product Code: 3AXD50000162222_S

  • Suitable for 380-480 VAC systems
  • Operates at 47.5/63 Hz frequency
  • IP20 protection rating
  • Compact size: 260x240x176 mm
  • Includes control unit & PC connection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Variable Speed Machinary Drive
Brand ABB
Series ACS380
Degree of Protection IP20
Depth 176 mm
Frame Size R4
Height 240 mm
Includes Control Unit, PC Connection
Number of Analogue Inputs 2
Number of Digital Inputs 5
Number of Digital Outputs 2
Number of Hardware Interfaces 3
Number of RS-485 Interfaces 1
Phase 3
Rated Current 45 A
Rated Frequency 47.5/63 Hz
Rated Power 22 kW
Rated Voltage 380-480 VAC
Width 260 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
