Specifications

Size of Frame	E6.2
G (0.1 to 1 x In) - I4 (A)	500-5000
I (1.5 to 15 x In) - I3 (A)	7500-75000
L (0.4 to 1 x In) - I1 (A)	2000-5000
No. of Poles	4P
Power Loss (W)	850
Rated Current (A)	5000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	100
Rated Uninterrupted Current - Iu (A)	5000
S (0.6 to 10 x In) - I2 (A)	3000-50000
Breaking Capacity 415V AC - Icu (kA)	100
Poles	4P
Breaking Capacity (kA)	100 @415V AC
Current Rating (A)	5000
Trip Unit - Electronic	EKIP Touch LSIG
AC Voltage (V)	690
Frame	E6.2
Icw (kA/1s) - Short-time Withstand Current Rating	100
Iu - Uninterrupted Current Rating (A)	5000
Product Type	Circuit Breaker
Brand	ABB
Breaking Capacity	100 kA
Component Type	Withdrawable
Frame Size	E6.2
Number of Poles	4
Power Loss	850 W
Rated Current	2000-5000 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 VAC
Rated Short Time Withstand Current	100 kA
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Terminal Type	Horizontal Rear Spread
Trip Unit	Ekip Touch LSIG
Version	Withdrawable

Description

The ACB E6.2H is a 4P circuit breaker with a rated current (In) of 5000A. It has an Icu rating of 100kA at 415V AC and a rated short-time withstand current Icw (1s) of 100kA. The circuit breaker features a withdrawable auto EKIP Touch LSIG trip unit with horizontal rear terminals. It also includes a geared motor device that operates on 100-130V AC/DC. The ACB E6.2H comes complete with WMP+FP functionality.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

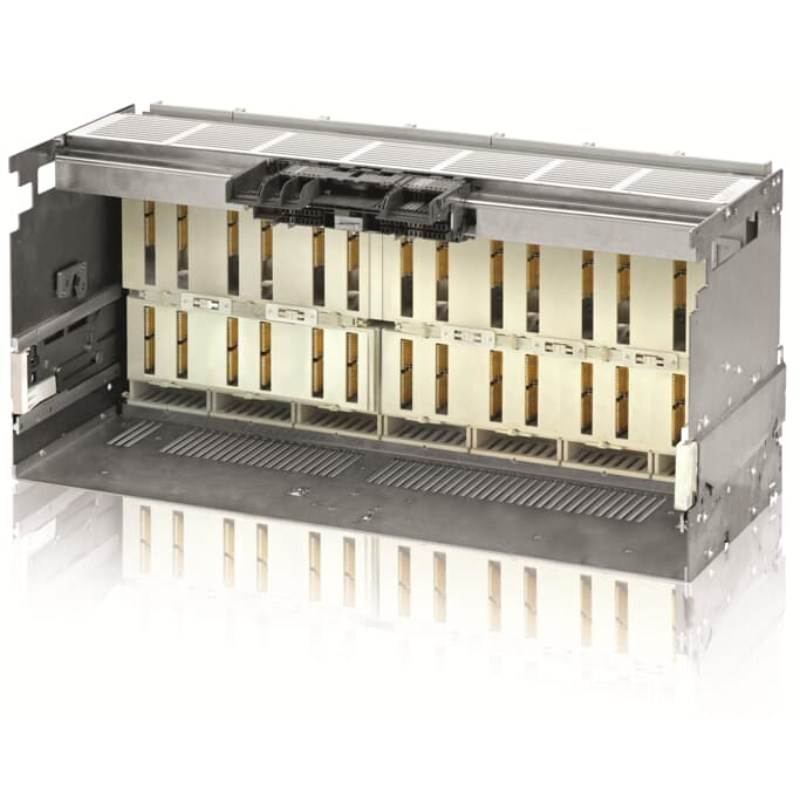

ABB E6H450WM120K ACB W/Fixed Part 2000-5000A 4-P 100kA 100-130VAC/DC Motor Operator E6.2 Ekip Touch LSIG

Product Code: E6H450WM120K
