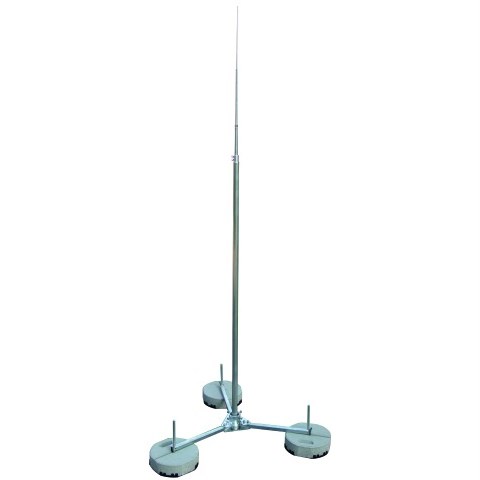

DEHN 105400 Air-Termination Rod W/Hinged Tripod 10mm Dia Round Conductor 4000mm L Steel

Product Code: 105400

  • Isolated lightning protection system
  • Compatible with round conductors
  • Dimensions: 1210x4000x1340 mm
  • Durable steel, hot dip galvanized finish
  • Complies with DIN EN standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Diameter (mm) 10
Dimensions (mm) 1210W x 4000H x 1340D
Weight (kg) 13.4
Type of Base 3/6/9 blocks, 17kg each
Type Air Termination Rods
Surface Protection Hot-dip galvanized
Max. Gust Wind Speed (km/h) 3 bases - 132, 6 bases - 184, 9 bases - 185
Radius (mm) 560
Product Type Air-Termination Rod With Hinged Tripod
Brand DEHN
Base Type 3 Blocks, 6 Blocks, 9 Blocks
Connection Type Round Conductor
Depth 1340 mm
Finish Hot Dip Galvanized
Height 4000 mm
Material Steel
Model Interception rod
Size 10 mm
Standards and Approvals DIN EN 62561-(1+2), DIN EN 1991-1-4, DIN EN 1991-1-4/NA
Weight 13.4 kg
Width 1210 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
