Specifications

Diameter (mm)	10
Dimensions (mm)	1210W x 5000H x 1340D
Weight (kg)	15
Type of Base	3/6/9 blocks, 17kg each
Type	Air Termination Rods
Surface Protection	Hot-dip galvanized
Max. Gust Wind Speed (km/h)	3 bases - 99, 6 bases - 132, 9 bases - 163
Radius (mm)	560

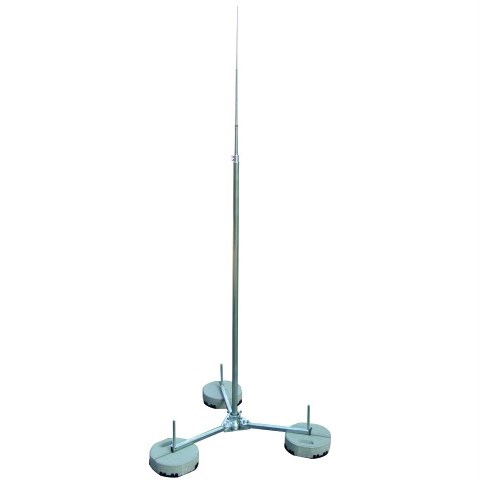

Product Type	Air-Termination Rod With Hinged Tripod
Brand	DEHN
Base Type	3 Blocks, 6 Blocks, 9 Blocks
Connection Type	Round Conductor
Depth	1340 mm
Finish	Hot Dip Galvanized
Height	5000 mm
Material	Steel
Model	Interception rod
Size	10 mm
Standards and Approvals	DIN EN 62561-(1+2), DIN EN 1991-1-4, DIN EN 1991-1-4/NA
Weight	15 kg
Width	1210 mm
