Specifications

Diameter (mm)	10
Dimensions (mm)	2530W x 7500H x 2850D
Weight (kg)	31.4
Type of Base	3/6/9/12 blocks, 17kg each
Type	Air Termination Rods
Surface Protection	Untreated
Max. Gust Wind Speed (km/h)	3 bases - 93, 6 bases - 112, 9 bases - 135, 12 bases - 149
Radius (mm)	1435

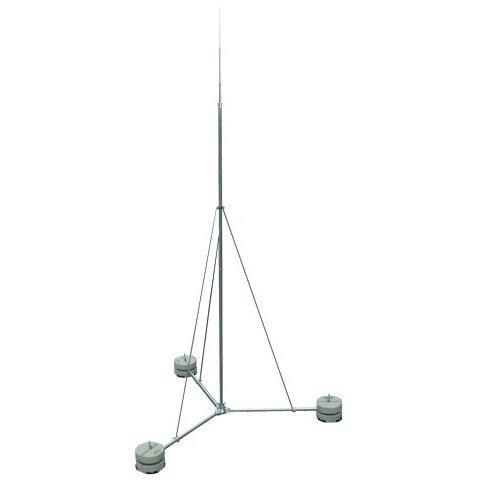

Product Type	Air-Termination Rod With Hinged Tripod
Brand	DEHN
Base Type	3 Blocks, 6 Blocks, 9 Blocks, 12 Blocks
Connection Type	Round Conductor
Depth	2850 mm
Finish	Untreated
Height	7500 mm
Material	Hot Dip Galvanized Steel
Model	Interception rod
Size	10 mm
Standards and Approvals	DIN EN 62561-(1+2), DIN EN 1991-1-4, DIN EN 1991-1-4/NA
Weight	31.4 kg
Width	2530 mm
