Specifications

Diameter (mm)	10
Dimensions (mm)	2900W x 11000H x 2560D
Weight (kg)	54
Type of Base	12/18 blocks, 17kg each
Type	Air Termination Rods
Surface Protection	Untreated
Max. Gust Wind Speed (km/h)	12 bases - 112, 18 bases - 135
Length of Air-Termination Rod (mm)	5000
Diameter of Air-Termination Rod (mm)	10 / 16 / 22 / 40 / 60
Radius (mm)	1200

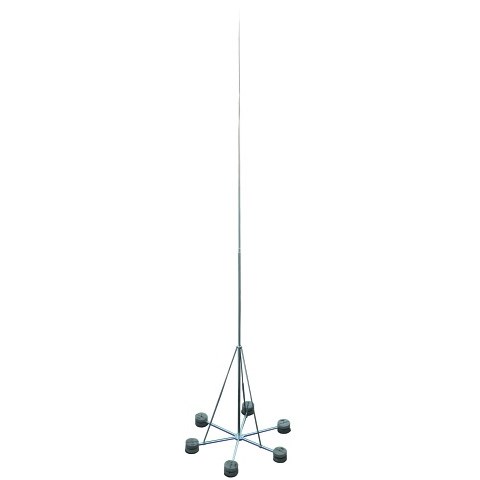

Product Type	Air-Termination Rod With Hinged Tripod
Brand	DEHN
Base Type	12 Blocks, 18 Blocks
Connection Type	Round Conductor
Depth	2560 mm
Finish	Untreated
Height	11000 mm
Material	Hot Dip Galvanized Steel
Model	Interception rod
Size	10 mm
Standards and Approvals	DIN EN 62561-(1+2), DIN EN 1991-1-4, DIN EN 1991-1-4/NA
Weight	54 kg
Width	2900 mm
