Specifications

Dimensions (mm)	7W x 10H x 3D
Suitable For	Earthing
Weight (kg)	0.47
Reference No.	772310
Type	Short-Circuiting Devices
Wire Cross Section (mm²)	16
Maximum Output Short-circuit Current (A)	33.5k (0.5s)

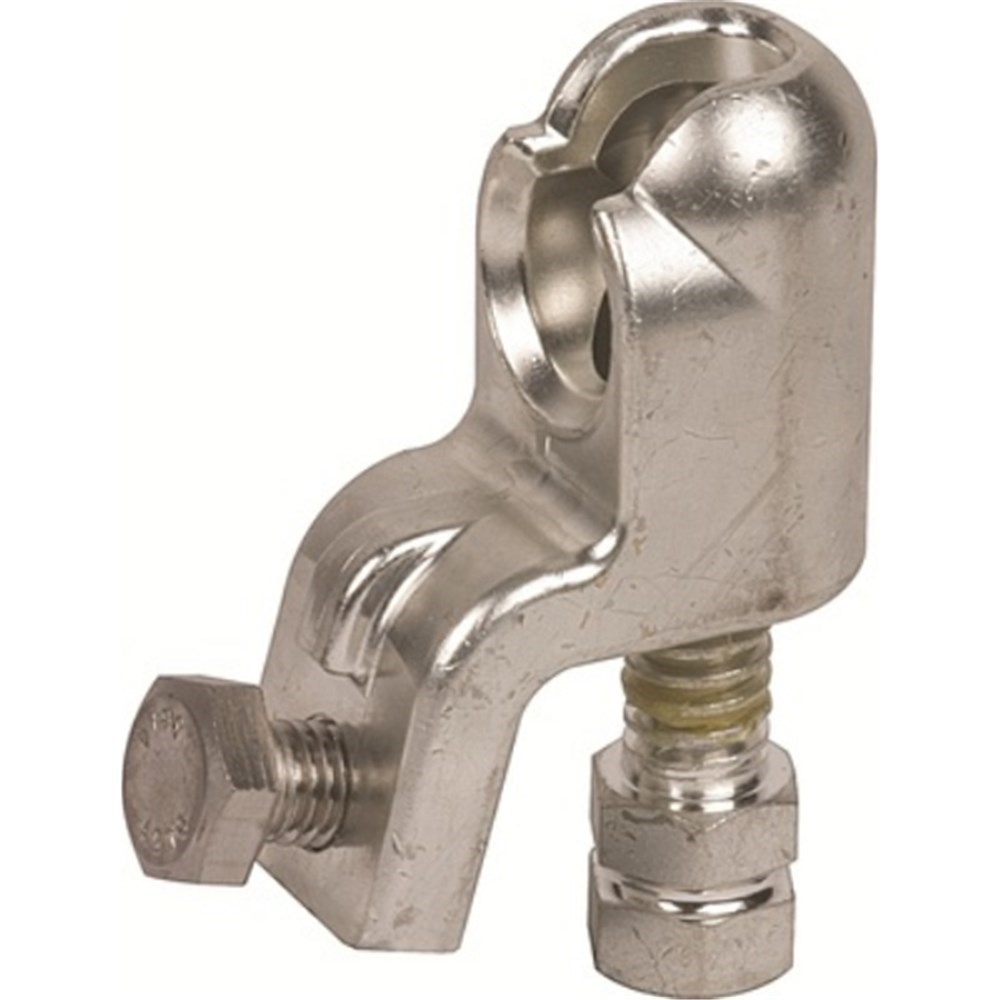

Product Type	Ball Head Cap With Hexa Shaft
Brand	DEHN
Connection Type	20 mm Fixed Ball Point
Cross Section	16-120 sq-mm
Depth	3 mm
Height	10 mm
Material	Copper Alloy
Operational Temperature	-25 to 55 deg C
Rated Current	33500 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)
Suitable For Use With	Earthing Rods
Weight	0.47 kg
Width	7 mm
