Specifications

Output Signal	4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Seals	FKM
Permissible Temperatures	Medium: -25 ... 125 °C Electronics / Environment: -25 ... 85 °C Storage: -40 ... 85 °C
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar)	0.16
Product Series	18.601 G

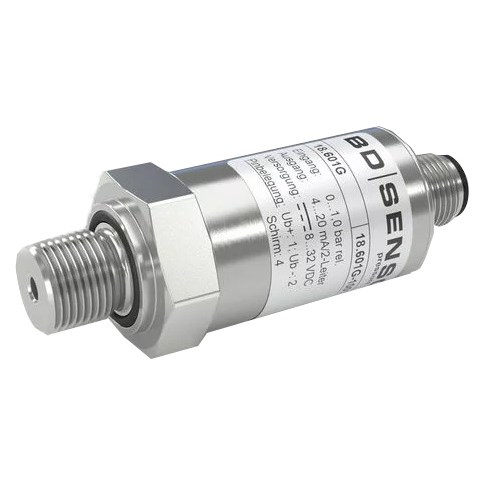

Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	18.601 G
Accuracy	<=160 mbar, <=+/-1% FSO
Application	General industrial applications.
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 10 g, 25 Hz … 2 kHz according to DIN EN 60068-2-6. Shock: 100 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/4 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	0 bar
Response Time	<=10 ms
Seal Material	FKM
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard

Description

18.601 G
