Specifications

Cable Length (m)	3
Pressure (mH2O)	2.5
Output Signal	4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Seals	FKM
Permissible Temperatures	Medium/ Electronics / Environment/ Storage: -10 ... 70 °C
Electrical Protection	Short-circuit protection: Permanent (3-wire ratiometric: none), Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.

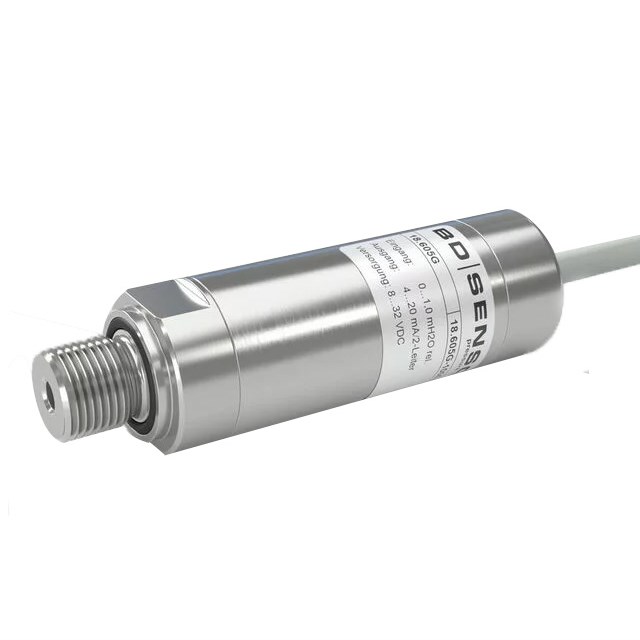

Product Series	18.605 G
Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	18.605 G
Accuracy	>160 mbar, <=+/-0.5% FSO
Application	Level measurement in water and fuel oil tanks.
Electrical Connection	PVC Cable
Mechanical Stability	Vibration: 10 g, 25 Hz … 2 kHz according to DIN EN 60068-2-6. Shock: 100 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/4 in DIN 3852
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Response Time	<=10 ms
Seal Material	FKM
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, REACH, RoHS
Version	Standard
Vibration Resistance	10 g RMS

Description

18.605 G
