Specifications

Output Signal	4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Seals	FKM
Permissible Temperatures	Medium: -25 ... 125 °C Electronics / Environment: -25 ... 85 °C Storage: -40 ... 85 °C
Input Pressure (bar)	16
Product Series	26.600 G
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.

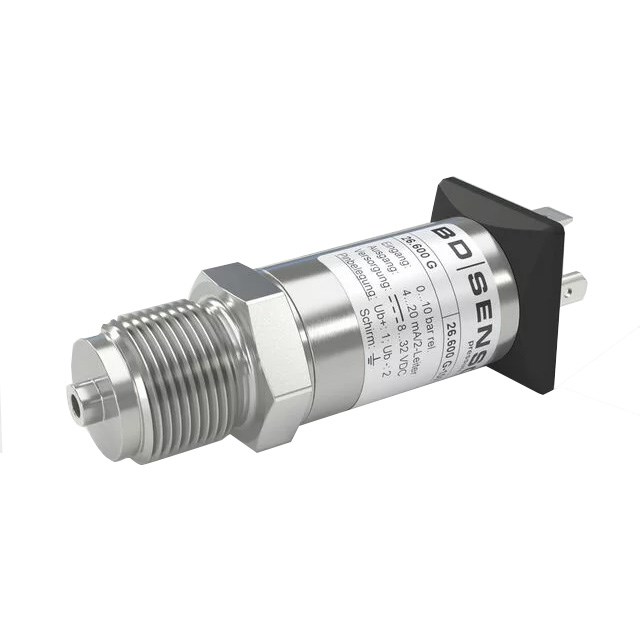

Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	26.600 G
Accuracy	0.5% FSO
Application	Mechanical and plant engineering. General industrial applications.
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 10 g, 25 Hz ... 2 kHz according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/4 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	16 bar
Response Time	<=10 ms
Seal Material	FKM
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
