Specifications

Output Signal	4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Pressure Port	Stainless steel 1.4404 (316L)
Seals	FKM
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Input Pressure (bar)	25
Product Series	DMK 331
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMK 331
Accuracy	0.5% FSO
Application	Plant and machine engineering. Energy industry. Environmental engineering (water - sewage - recycling). Medical technology (Specially for oxygen application).
Diaphragm Material	Ceramic Al2O3 96%
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	25 bar
Response Time	<=10 ms
Seal Material	FKM
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard

Description

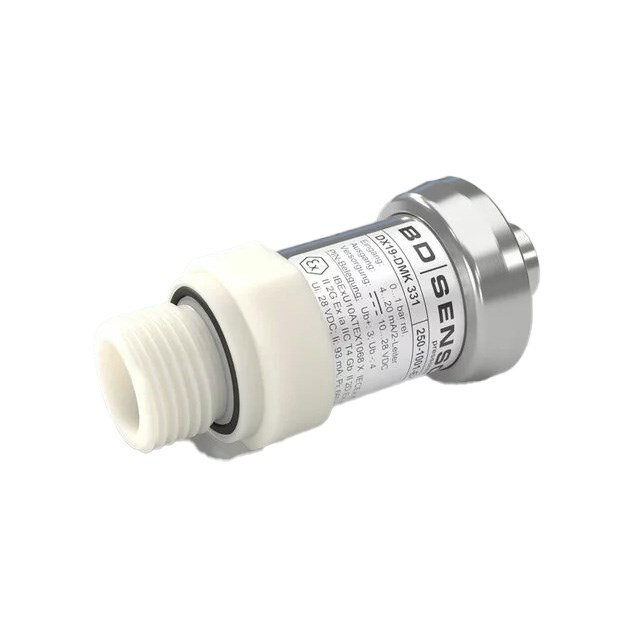

DMK 331
