Specifications

Pressure Port	PVDF (PVDF only with G1/2" DIN 3852 open pressure port (up to 60 bar); permissible medium temperature: -30 … 60 °C)
Output Signal	4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Seals	FKM
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar)	4.0
Product Series	DMK 331
Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMK 331
Accuracy	0.5% FSO
Application	Plant and machine engineering. Energy industry. Environmental engineering (water - sewage - recycling). Medical technology (Specially for oxygen application).
Diaphragm Material	Ceramic Al2O3 96%
Electrical Connection	Cable Outlet, Cable with Ventilation Tube (IP68)
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	4 bar
Response Time	<=10 ms
Seal Material	FKM
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard

Description

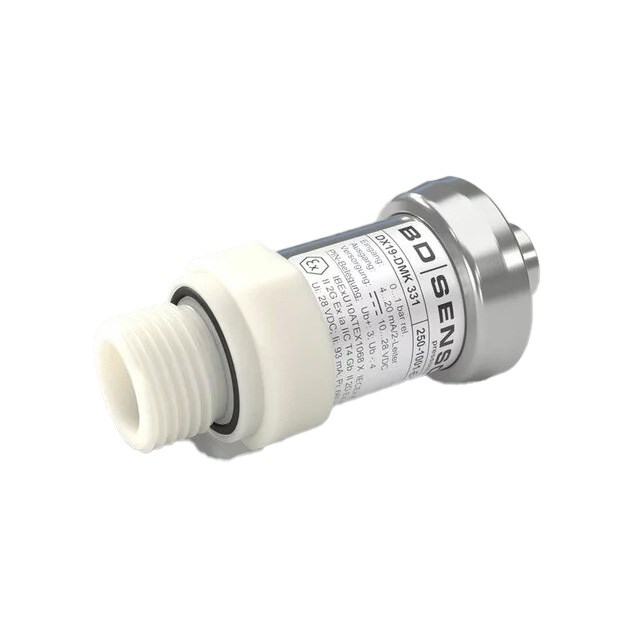

DMK 331
