Specifications

Pressure Port	PVDF [PP / PVDF possible only with G1/2" DIN 3852 open pressure port, pN ≤ 10 bar and without explosion protection; permissible medium temperature: -30 … 60 °C]
Output Signal	4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Seals	FKM
Permissible Temperatures	Medium: -40 ... 125 °C ( for pressure port in PVDF or PP the medium temperature is -30 … 60 °C) Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar)	-1…0

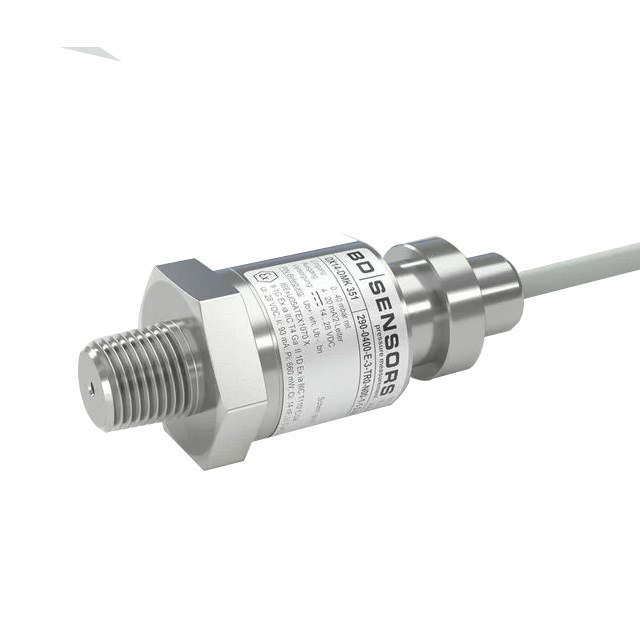

Product Series	DMK 351
Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	DMK 351
Accuracy	0.35% FSO
Application	Plant and machine engineering. Laboratory applications. Preferred use for fuel, oil and water.
Diaphragm Material	Ceramic Al2O3 96%
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 10 g RMS (20 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Response Time	<=10 ms
Seal Material	FKM
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard
