Specifications

Output Signal	SIL2 with intrinsic safety 4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Seals	FKM
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar)	0.25 (Absolute pressure possible from 0.4 bar)

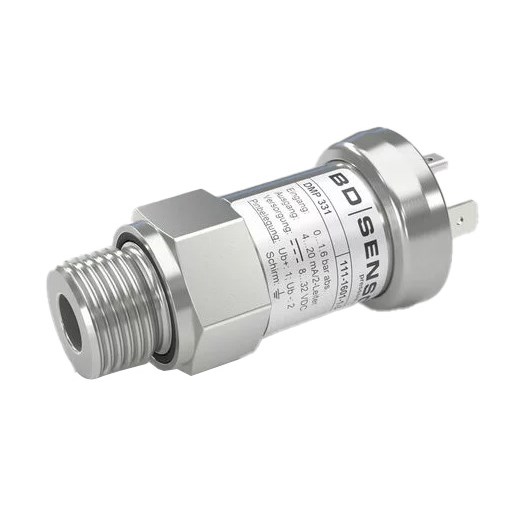

Product Series	DMP 331
Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMP 331
Accuracy	<0.4 bar, 0.5% FSO
Application	Plant and machine engineering. Environmental engineering (water - sewage - recycling). Energy industry.
Electrical Connection	M12 x 1 Male Plug (4 Pin)
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles.
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Seal Material	FKM
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard

Description

DMP 331
