Specifications

Output Signal	Intrinsic safety 4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Input Pressure (mbar)	-100…100
Seals	FKM
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Product Series	DMP 331

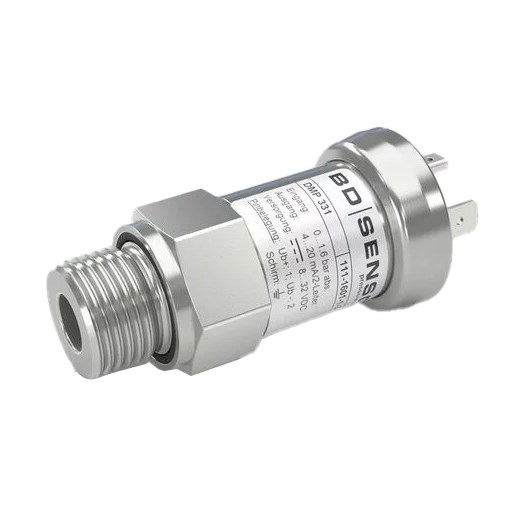

Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMP 331
Accuracy	<0.4 bar, 0.5% FSO
Application	Plant and machine engineering. Environmental engineering (water - sewage - recycling). Energy industry.
Electrical Connection	M12 x 1 Male Plug (4 Pin)
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/4 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles.
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Seal Material	FKM
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard
