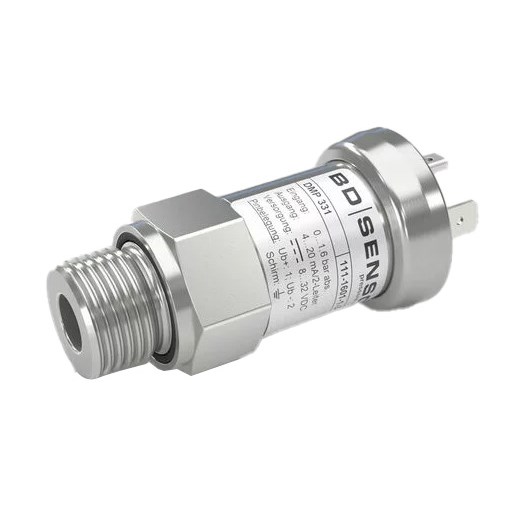

BD Sensors 110V302131001001000 Industrial Pressure Transmitter Ceramic Al2O3 96% Diaphragm

Product Code: 110V302131001001000

  • Wide temp range: -40 to 125°C
  • High shock resistance: 500 g/1 ms
  • Long life: 10 million operations
  • Fast response time: <=10 ms
  • CE, cULus, REACH & RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Industrial Pressure Transmitter
Brand BD SENSORS
Series DMP 331
Diaphragm Material Ceramic Al2O3 96%
Electrical Connection Male and Female Plug ISO 4400
Mechanical Connection G1/2 in DIN 3852
Mechanical Life 10000000 Operations
Operational Temperature -40 to 125 deg C
Response Time <=10 ms
Seal Material FKM
Shock Resistance 500 g/1 ms
Standards and Approvals CE, cULus, REACH, RoHS
