Specifications

Output Signal	4 … 20 mA / 2-wire
Filling Fluid Type	Food compatible oil (FDA) / 3A
Response Time (ms)	< 10
Seals	For clamp, dairy pipe, Varivent®: Without
Permissible Temperatures	Medium: -10 ... 125 °C Medium with Cooling Element: -10 ... 250 °C/-10 ... 150 °C (Overpressure/Vacuum) Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Input Pressure (bar)	10

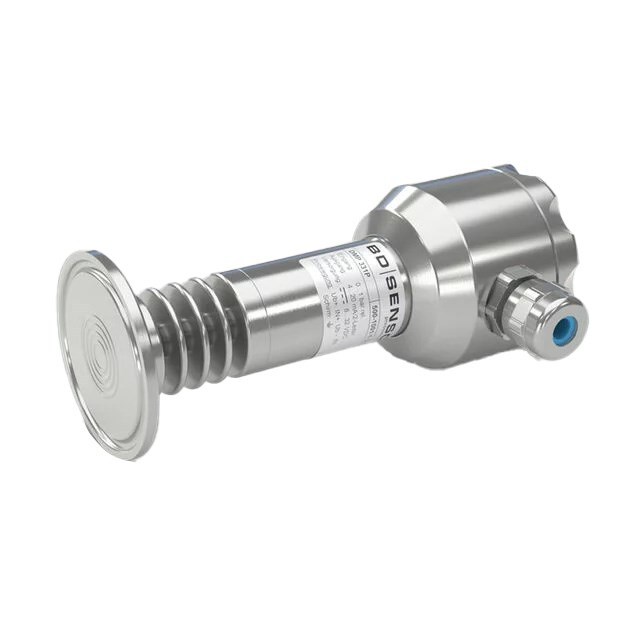

Product Series	DMP 331P
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMP 331P
Accuracy	>=0.4 bar, 0.35% FSO
Application	Food and beverage related applications. Pharmaceutical industry.
Diaphragm Material	316L Stainless Steel
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: G 1/2": 20 g RMS (25 ... 2000 Hz), Others: 10 g RMS (25 … 2000 Hz) according to DIN EN 60068-2-6. Shock: G 1/2": 500 g / 1 msec, Others: 100 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	Clamp DN 32/1-1/2 in DIN 32676
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles.
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	10 bar
Response Time	< 10 ms
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard
