Specifications

Output Signal	SIL2 4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Seals	FKM
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Input Pressure (bar)	100
Product Series	DMP 333
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMP 333
Accuracy	0.35% FSO
Application	Plant and machine engineering. Machine tools. Hydraulic presses. Injection moulding machine. Handling equipment. Elevated platforms. Test benches. Mobile hydraulics.
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 11 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/4 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles.
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	100 bar
Response Time	<=10 ms
Seal Material	FKM
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard

Description

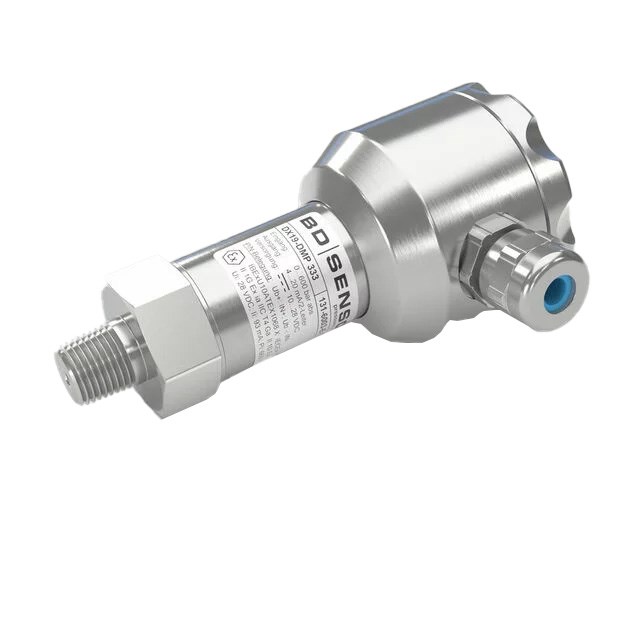

DMP 333
