Specifications

Output Signal	0 … 10 V / 3-wire
Response Time (ms)	≤ 3
Seals	FKM
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Input Pressure (bar)	200
Product Series	DMP 333
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.

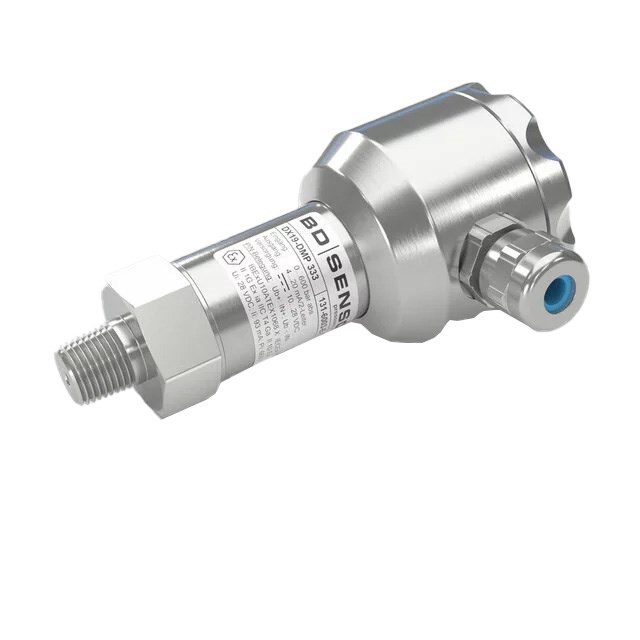

Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMP 333
Accuracy	>=0.4 bar, 0.35% FSO
Application	Plant and machine engineering. Machine tools. Hydraulic presses. Injection moulding machine. Handling equipment. Elevated platforms. Test benches. Mobile hydraulics.
Electrical Connection	M12 x 1 Male Plug (4 Pin)
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 11 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2 in DIN 3852
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles.
Operational Temperature	-40 to 125 deg C
Output Type	0-10 V
Rated Pressure	200 bar
Response Time	<=3 ms
Seal Material	FKM
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard
