Specifications

Output Signal	4 … 20 mA / 2-wire
Response Time (ms)	< 5
Seals	Without (welded version)
Permissible Temperatures	Medium: -40 ... 140 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Input Pressure (bar)	1000
Product Series	DMP 334
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	DMP 334
Accuracy	0.35% FSO
Application	Plant and machine engineering. Commercial vehicles and mobile hydraulics.
Electrical Connection	M12 x 1 Male Plug (4 Pin)
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 11 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2 in EN 837
Mechanical Life	1000000 Operations
Operational Life	10 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	1000 bar
Response Time	< 5 ms
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard (adjustable) [Not possible in combination with IS-version, compact field housing and cable outlet with PVC cable]

Description

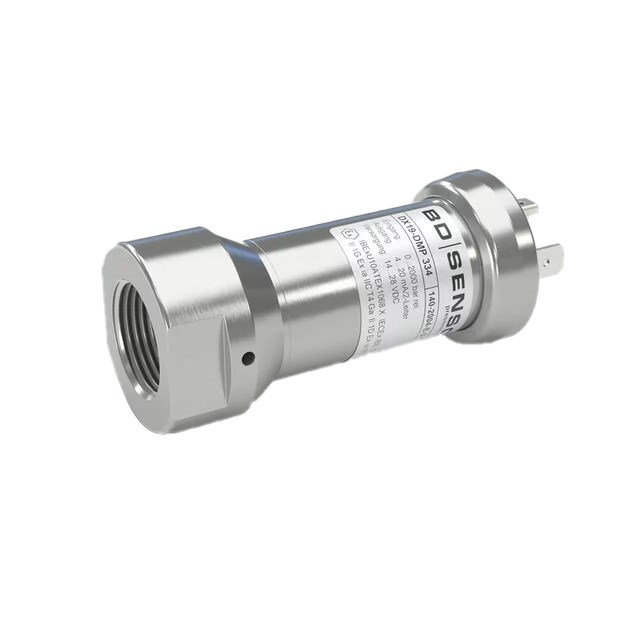

DMP 334
