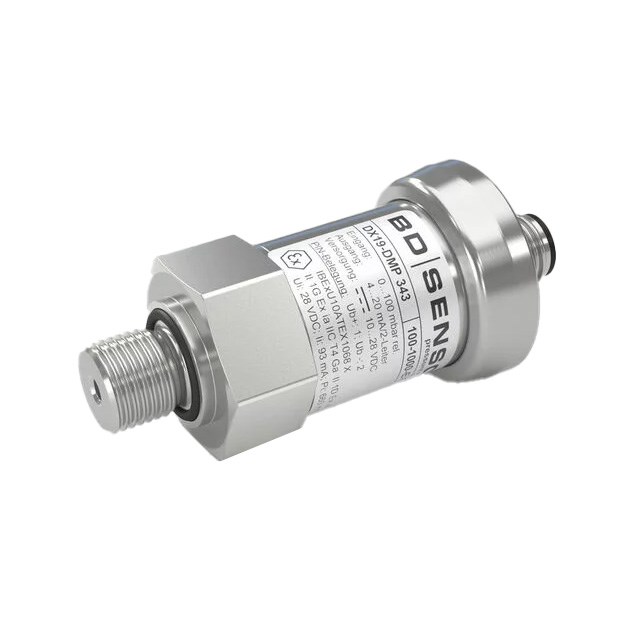

BD Sensors 100400013M101001000 Industrial Pressure Transmitter

Product Code: 100400013M101001000

  • Stainless steel sensor for durability
  • 4-20 mA output for consistent signals
  • High accuracy at >100 mbar, 0.35% FSO
  • Wide temp range: -40 to 125°C
  • Certified: CE, cULus, IEC, REACH, RoHS
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Output Signal 4 … 20 mA / 2-wire
Response Time (ms) ≤ 10
Input Pressure (mbar) 400
Seals FKM
Permissible Temperatures Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Product Series DMP 343
Electrical Protection Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Product Type Industrial Pressure Transmitter
Brand BD SENSORS
Series DMP 343
Accuracy >100 mbar, 0.35% FSO
Application Plant and machine engineering. Heating and air conditioning.
Electrical Connection M12 x 1 Male Plug (4 Pin)
Mechanical Stability Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection G1/2 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 400 mbar
Response Time <=10 ms
Seal Material FKM
Shock Resistance 500 g/1 ms
Standards and Approvals CE, cULus, IEC, REACH, RoHS
Version Standard

Description

DMP 343
