Specifications

Cable Length (m)	5
Pressure (mH2O)	1.0
Seals	FKM
Permissible Temperatures	Medium: -10 ... 70 °C Storage: -25 ... 70 °C
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.

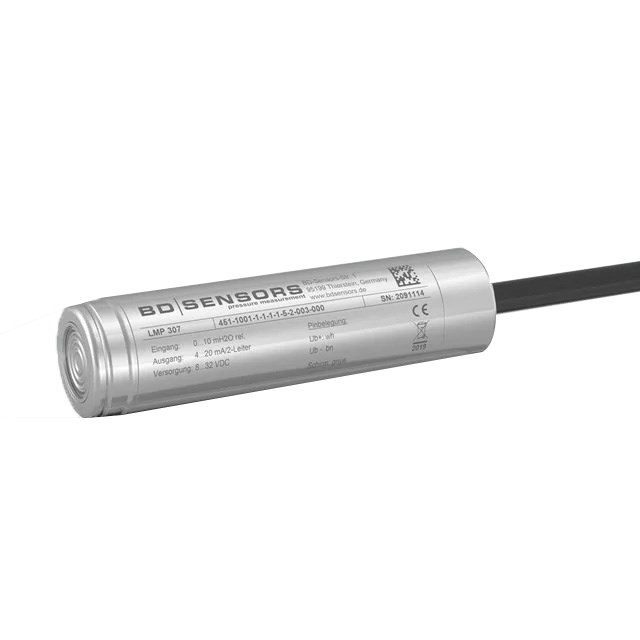

Product Series	LMP 307
Output Signal	Intrinsic safety 4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Product Type	Probe
Brand	BD SENSORS
Series	LMP 307
Accuracy	<0.4 bar, 0.5% FSO
Application	Water / filtrated sewage: Drinking water systems, Ground water level measurement, Rain spillway basins, Pump and booster stations, Level measurement in containers, Water treatment plants, Water recycling. Fuel and oil: Fuel storage, Tank farms.
Diaphragm Material	316L Stainless Steel
Electrical Connection	PVC Cable
Housing Material	316L Stainless Steel
Operational Temperature	-10 to 70 deg C
Rated Pressure	1 mH2O
Response Time	<=10 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard
