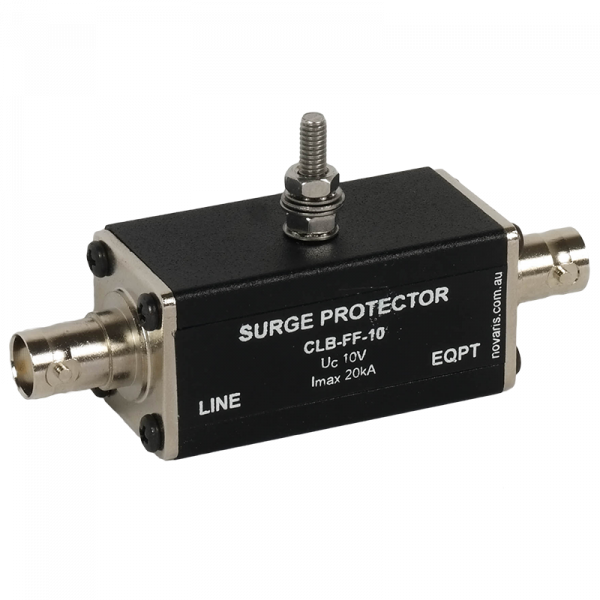

Novaris CLB-FF-10 Coaxial CCTV Protector 20kA 8.2VAC BNC Female 26mm W 86mm D 26mm H Aluminium

Product Code: CLB-FF-10

  • Surge protector for BNC connections
  • Handles up to 20 kA current
  • Compact size: 26x26x86 mm
  • Operates from -40 to 85°C
  • Aluminium construction for durability
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Operational Temperature Range (°C) -40 to 85
Enclosure Material Aluminium
Dimensions (mm) 26W x 26H x 86D
Maximum Load Current - I? (A) 0.5
Voltage Protection at 5kV (10/700µs) - Up (kV) 14
Weight (g) 100
Maximum Discharge Current (8/20µs) (kA) 20
Product Type Coaxial CCTV Protector
Brand NOVARIS
Connection Type BNC
Connector Orientation Female
Depth 86 mm
Height 26 mm
Humidity 0-90%
Material Aluminium
Modes of Protection Transverse and Common Modes
Operational Temperature -40 to 85 deg C
Rated Current 20 kA
Rated Voltage 8.2 VAC
Voltage Protection Level 14 V
Weight 100 g
Width 26 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
