IPD W66EL5M15 Extension Lead 3 Flat-Pin 1-Ph 15A 250VAC/DC IP66

Product Code: W66EL5M15

  • 15A rated current for reliable power
  • IP66 protection against dust and water
  • Supports 250 VAC/VDC voltage
  • M20 gland entries for secure connections
  • Durable 5m cable length
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Length (m) 5
Maximum Cable Cross Section (mm²) 4.5
No. of Pins 3
No. of Phases 1
Rated Current (A) 15
Rated Voltage AC/DC (V) 250
Product Type Extension Lead
Brand IPD
Cable Cross Section 1.5 sq-mm
Cable Length 5 m
Cover Style Orange
Degree of Protection IP66
Gland Entries M20
Number of Pins 3
Phase 1
Pin Type Flat
Rated Current 15 A
Rated Voltage 250 VAC/VDC
Standards and Approvals AS3112

Description

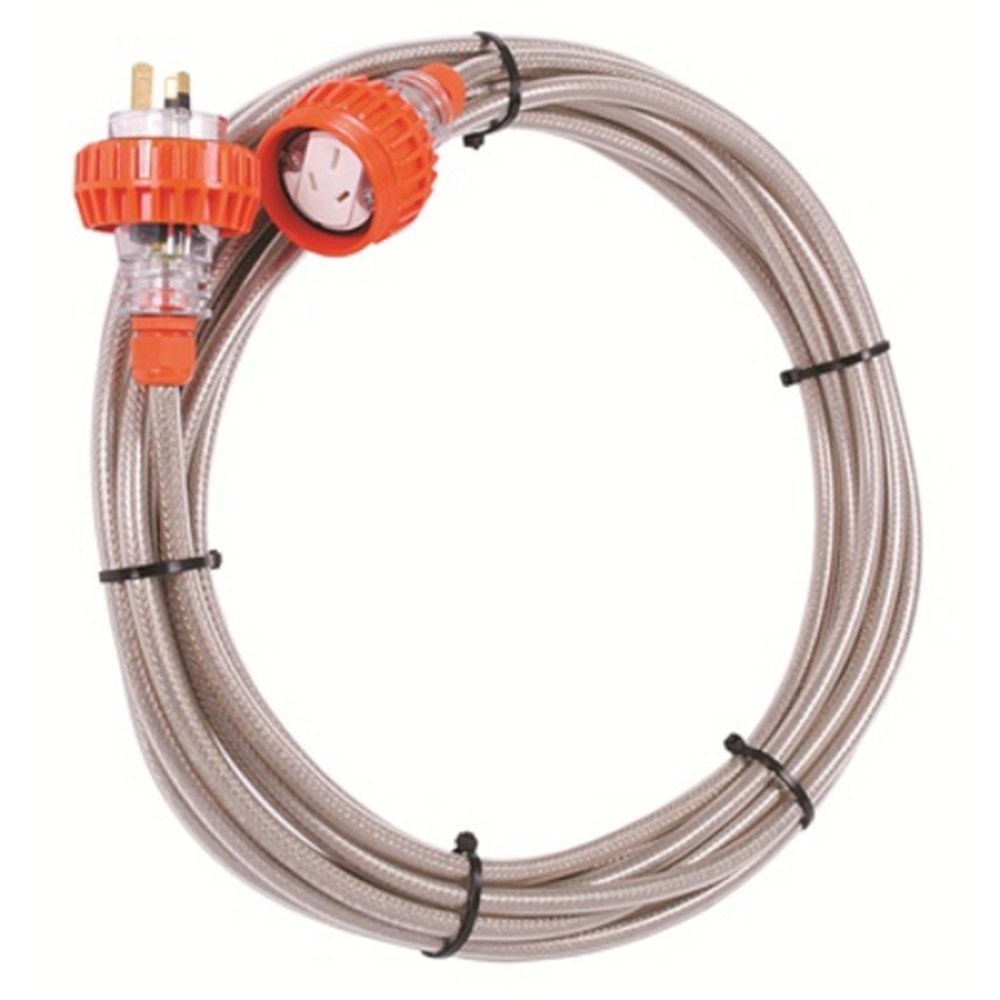

This braided industrial extension lead features IP66 rated plugs and sockets, ensuring reliable performance in demanding environments. With a current rating of 15A and a cable length of 5m, it provides ample power and flexibility for various applications. The cables are 1.5mm² with 3 cores, screened with a braided shield that is earthed for added safety. Additionally, the triple insulated braided flex enhances durability and protection.
