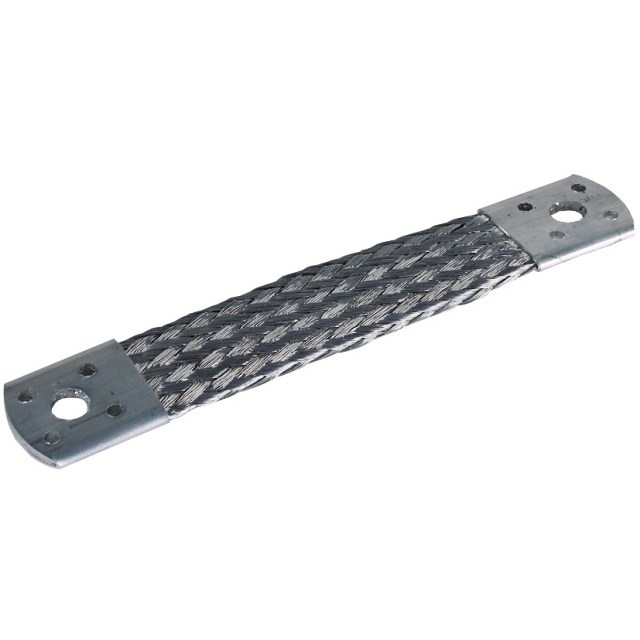

DEHN 377015 Bridging Braid Blind Rivets Drilling Screws 180mm L 3mm W 1mm D 18mm H Aluminium

Product Code: 377015

  • Aluminium construction, untreated finish
  • Compatible with earthing rods
  • Meets EN 62561-1 standards
  • Handles lightning currents up to 100 kA
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cross Section (mm²) 50
Dimensions (mm) 3W x 18H x 1D
Suitable For Earthing
Weight (kg) 0.036
Class (Lightning Current Carrying Capability) (kA) 100
Length (mm) 180
Fixing Hole Ø (mm) [8x] Ø5.2 / [2x] Ø10.5
Type Equipotential Bonding
Surface Protection Untreated
Product Type Bridging Braid
Brand DEHN
Connection Type Blind Rivets, Drilling Screws
Connector Type blind rivets or drilling screws
Cross Section 50 sq-mm
Depth 1 mm
Finish Untreated
Height 18 mm
Length 180 mm
Lightning Current Carrying Capability 100 kA
Material Aluminium
Standards and Approvals EN 62561-1
Suitable For Use With Earthing Rods
Weight 36 g
Width 3 mm
