Specifications

Ambient Temperature Range (°C)	-40 to +80
Cross Section (mm²)	16
Dimensions (mm)	2W x 33H x 2D
Length (mm)	300
Suitable For	Earthing
Weight (kg)	0.09
Class (Lightning Current Carrying Capability) (kA)	50
Fixing Hole Ø (mm)	[4x] Ø6.5 / [2x] Ø10.5
Type	Equipotential Bonding
Surface Protection	Untreated

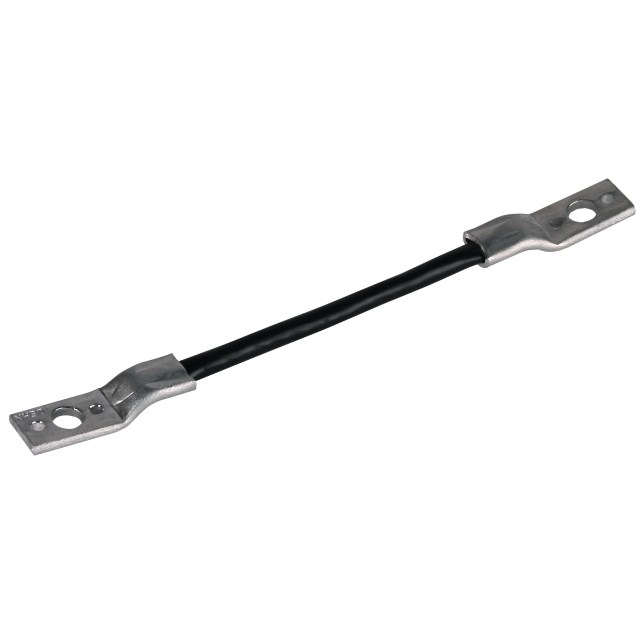

Product Type	Bridging Cable
Brand	DEHN
Cable Type	Flexible
Cross Section	16 sq-mm
Depth	2 mm
Finish	Untreated
Height	33 mm
Insulation Class	rubber EM5 black
Length	300 mm
Lightning Current Carrying Capability	50 kA
Material	Copper
Operational Temperature	-25 to 85 deg C
Standards and Approvals	EN 62561-1
Suitable For Use With	Earthing Rods
Weight	72 g
Width	2 mm
