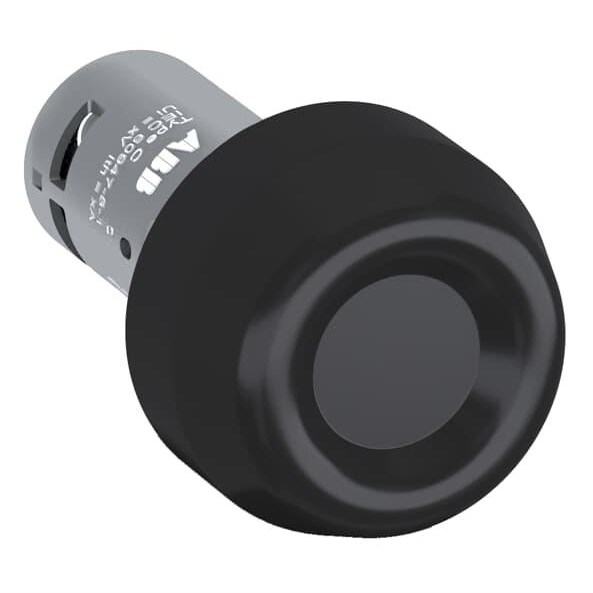

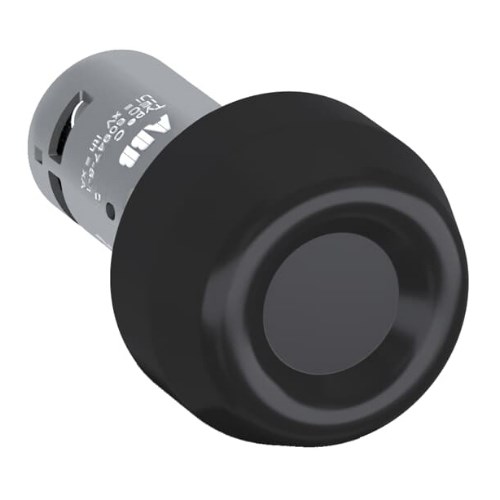

ABB CP6-10B-02 Compact Non-Illuminated Heavy Duty Pushbutton Momentary Black Silicone Rubber Cap 2NC Screw

Product Code: CP6-10B-02

  • Non-illuminated, black pushbutton design
  • High protection: IP66, 67, 69K front
  • Operates in -25 to 70°C environment
  • Screw terminal connection for secure fit
  • Durable with 0.5M operations lifespan
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
Dimensions (mm) 37W X 37H X 61D
Operational Temperature Range (°C) -25 to +70
Rated Frequency (Hz) 50/60
Maximum Operational Voltage DC (V) 300
Maximum Operational Voltage AC (V) 300
Tightening Torque (Nm) 0.8
Rated Operational Current 240V AC (A) 1
Rated Operational Current 125V DC (A) 0.2
Rated Operational Current 24V DC (A) 0.3
Product Type Compact Heavy Duty Pushbutton
Brand ABB
Series CP
Ambient Temperature -25 to 70 deg C
Bezel Material Silicone Rubber Cap
Button Colour Black
Colour Black
Connecting Capacity Flexible with Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible 1/2 x 0.5 - 1.5 sq-mm, Solid 1/2 x 0.5 - 1.5 sq-mm
Connection Type Screw
Contact Configuration 2NC
Degree of Protection IP66, 67, 69K Front, IP20 Terminal
Depth 61 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 37 mm
Illumination Non-Illuminated
Mechanical Life 0.5 million Operations
Mode of Operation Momentary
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Thermal Current 5 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 1 N-m
Weight 0.031 kg
Width 37 mm
Wire Stripping Length 6 mm

Description

The Heavy Duty Pushbutton is a compact range product with a black silicone rubber cap. It features 2NC contacts, making it suitable for heavy-duty applications.
