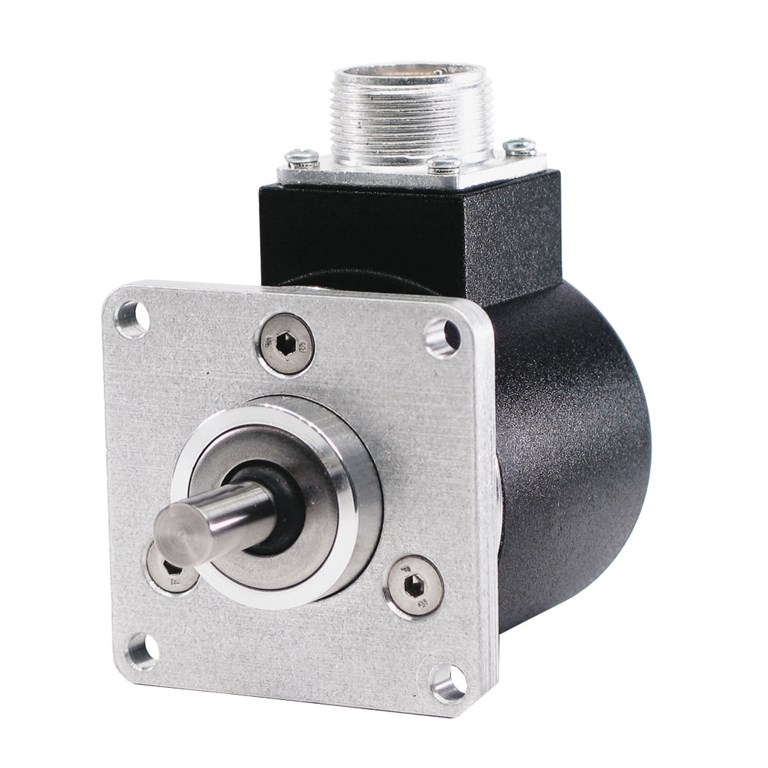

CL Encoder 7251SF11000QHV1EWSTIP50 Heavy-Duty Encoder 725 5-24VDC IP50

Product Code: 7251SF11000QHV1EWSTIP50

  • Versatile 5-24 VDC line driver output
  • Durable 303 stainless steel construction
  • High precision with 1000 PPR resolution
  • Robust IP50 protection rating
  • Operates in temperatures from 0 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Channels Quadrature A+B
Operational Temperature Range (°C) 0 to +70
Rated Operational Voltage DC (V) 5 - 24
Shaft Dimensions (mm) 9.5mm + Flat
Product Type Heavy-Duty Encoder
Brand CL ENCODER
Series 725
Connector Type 6-Pin MS Connector
Degree of Protection IP50
Humidity 95%
Material 303 Stainless Steel
Mounting Type 63.5 mm Square Flange
Number of Channels 2
Operational Temperature 0 to 70 deg C
Output Type Line Driver
Pulses Per Revolution 1000 PPR
Rated Current 100 mA
Rated Voltage 5-24 VDC
Shaft Size 9.5 mm
Shaft Speed 8000 RPM
Shock Resistance 75 g/11 ms
Vibration Resistance 58-500 Hz
