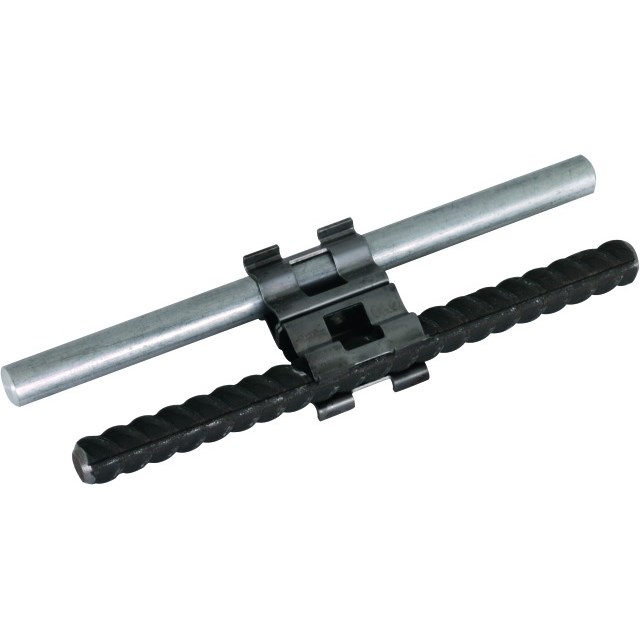

DEHN 308133 Rebar Clamp 12mm 10mm Parallel Connector Steel

Product Code: 308133

  • Parallel connector for secure connections
  • Meets EN 62561-1 standards
  • Handles lightning current up to 50 kA
  • Compact size: 30mm width, 42.5mm height
  • Steel material with untreated finish
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 3W x 4H x 1D
Thickness (mm) 1
Suitable For Earthing
Weight (kg) 0.02
Surface Protection Untreated
Conductor Diameter (mm) 12
Lightning current load-bearing capacity (10/350µs) 50
Type Equipotential Bonding
Clamping Range (mm) 12 / 10
Product Type Rebar Clamp
Brand DEHN
Clamping Range 12 mm, 10 mm
Connection Type Parallel Connector
Connector Type Parallel connector
Depth 16 mm
Finish Untreated
Height 42.5 mm
Lid Screw Type Screwless
Lightning Current Carrying Capability 50 kA
Material Steel
Rated Short Circuit Current 2.7 kA
Standards and Approvals EN 62561-1
Thickness 1 mm
Weight 20 g
Width 30 mm
