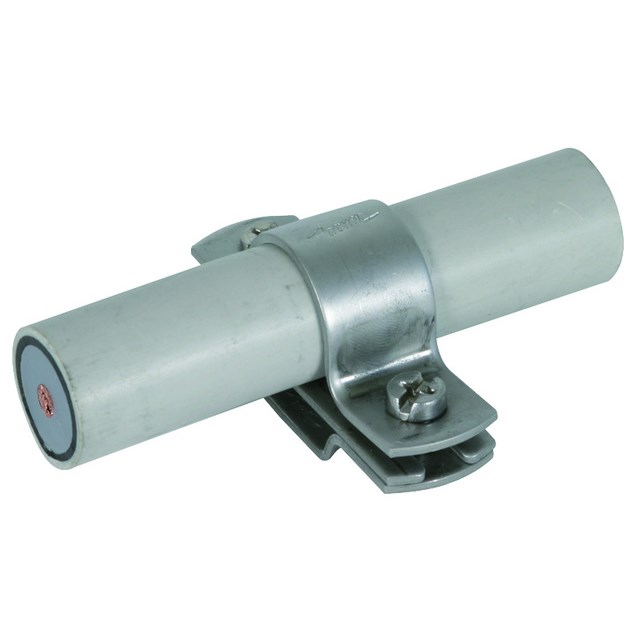

DEHN 275239 Conductor Holder Screw Clamp Mount 4mm W 2mm D 6mm H M6 x 14mm 304 Stainless Steel

Product Code: 275239

  • Made from durable 304 stainless steel
  • Compact size: 4mm width, 6mm height
  • Screw clamp mounting for secure hold
  • Complies with EN 62561-4 standards
  • Compatible with HVI systems
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 4W x 6H x 2D
Suitable For HVI Conductor
Weight (kg) 0.073
Fixing Hole Ø (mm) 6.5 x 16mm
Mounting Method Bore hole
Rod Diameter (mm) 23
Holder Material Stainless steel 304 (V2A)
Saddle Material Stainless steel 304 (V2A)
Carrier Material Stainless steel 304 (V2A)
Product Type Conductor Holder
Brand DEHN
Base Material Stainless steel 304 (V2A)
Depth 2 mm
Height 6 mm
Material 304 Stainless Steel
Mounting Type Screw Clamp
Standards and Approvals EN 62561-4
Suitable For Use With HVI
Thread Size M6 x 14 mm
Weight 0.073 kg
Width 4 mm
