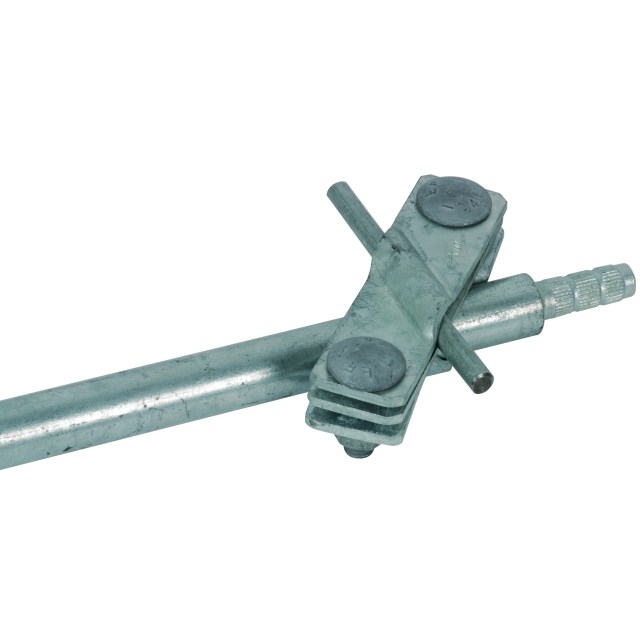

DEHN 620015 Connection Bracket 7-10mm 30-40mm M10 x 35mm Screw Steel

Product Code: 620015

  • M10 x 35 mm screw connection
  • Fits clamping range of 7-10 mm, 30-40 mm
  • Hot dip galvanized steel for durability
  • Rated short circuit current: 21 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 108W x 30D
Suitable For Earth Rods
Weight (kg) 0.37
Short-Circuit Current Rating - Iscpv (kA) 21
Clamping Range (mm) 7-10/ -40
Surface Protection Hot-dip Galvanized
Earthing Connection Diameter (mm) 20
Screw/Nut Material St/tZn
Product Type Connection Bracket
Brand DEHN
Clamping Range 7-10 mm, 30-40 mm
Connection Type M10 x 35 mm Screw
Depth 30 mm
Finish Hot Dip Galvanized
Material Steel
Rated Short Circuit Current 21 kA
Screw Size M10 x 35
Standards and Approvals EN 62561-1
Suitable For Use With Earth Rods
Weight 370 g
Width 108 mm
