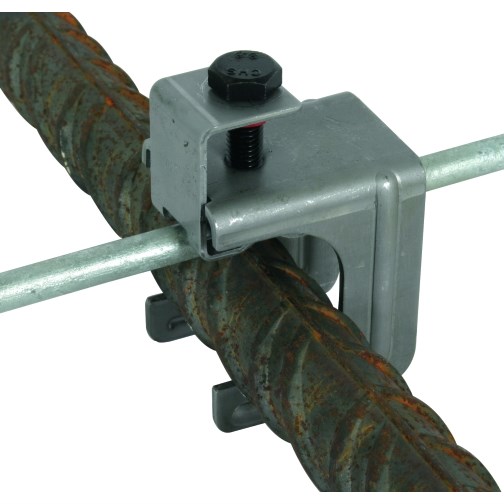

DEHN 308036 Connecting Clamp W/Clamping Frame 20-32mm 8-10mm M10 x 35mm Screw Steel

Product Code: 308036

  • M10 x 35 mm screw connection
  • Clamping range: 20-32 mm, 8-10 mm
  • Lightning current capacity: 50 kA
  • Rated short circuit current: 14 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 6W x 11H x 5D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 14
Weight (kg) 0.266
Surface Protection Untreated
Conductor Diameter (mm) 20
Lightning current load-bearing capacity (10/350µs) 50
Clamping Range (mm) 20 - 32
Product Type Connecting Clamp With Clamping Frame
Brand DEHN
Clamping Range 20-32 mm, 8-10 mm
Connection Type M10 x 35 mm Screw
Connector Type T-/cross-/parallel connector
Depth 5 mm
Finish Untreated
Height 11 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 50 kA
Material Steel
Rated Short Circuit Current 14 kA
Standards and Approvals EN 62561-1
Thread Size M10 x 35mm
Weight 266 g
Width 6 mm
