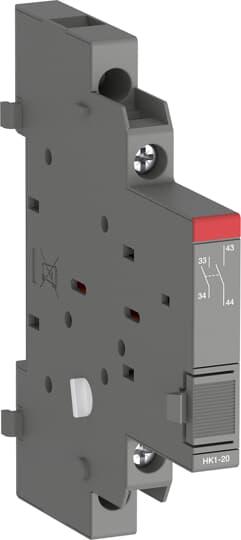

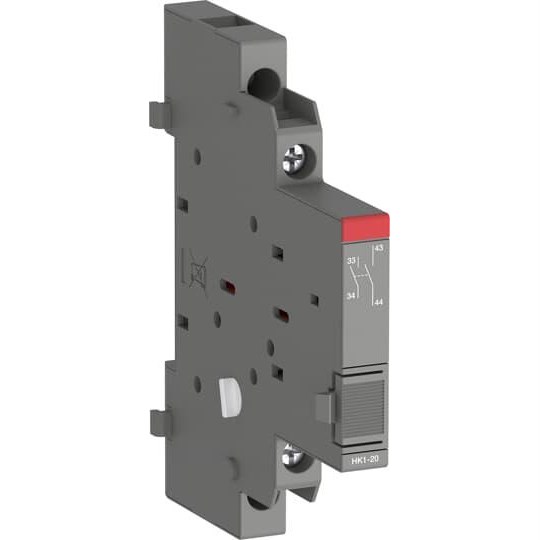

ABB HK1-20 Auxiliary Contact 690/600VAC/DC

Product Code: HK1-20

  • Clip-On accessory for motor starters
  • Rated voltage: 690/600 VAC/VDC
  • Contact configuration: 2NO
  • Screw terminal connection type
  • Operational temp: -25 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Auxiliary Contacts 2NO
Rated Insulation Voltage (V) 690
Suitable For MS116, MS132, MS165
Product Quantity 2
Rated Operational Current AC-15 230V (A) 4
No. of Normally-open Contacts 2
Product Type Auxiliary Contact
Brand ABB
Ambient Temperature -50 to 80 deg C
Connection Type Screw Terminal
Contact Configuration 2NO
Degree of Protection IP20
Depth 78.5 mm
Height 90 mm
Model Clip-On
Mounting Type Side
Operational Temperature -25 to 60 deg C
Rated Current 4 A
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Voltage 690/600 VAC/VDC
Suitable For Use With MS116, MS132, MS165 Motor Starters
Terminal Type Screw
Tightening Torque 0.8-1.2 N-m
Width 9 mm
Wire Stripping Length 8 mm

Description

Auxiliary contacts HK1 change position with the main contacts of the manual motor starter. They are mounted laterally on the right side of manual motor starters MS116, MS132 or MS165. Auxiliary contacts HK1 are available as normally open or normally closed contacts.
