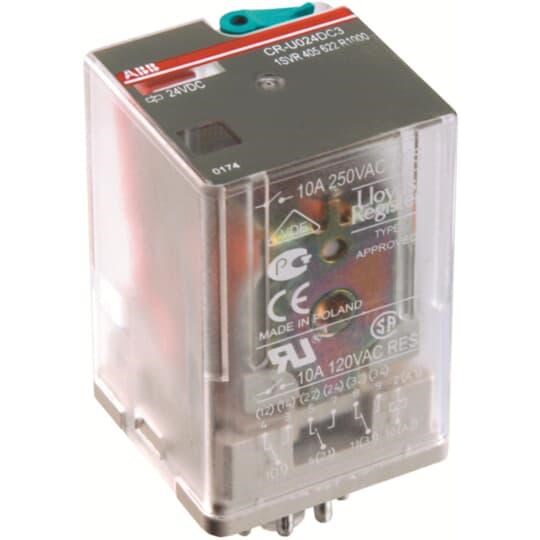

ABB CRU024DC3 Pluggable Interface Relay 35mm W Pin Terminal 24VDC 10A

Product Code: CRU024DC3

  • Pluggable universal interface relay
  • Rated for 24 VDC, 10 A applications
  • Compact size: 35 mm width & length
  • Operates in -40 to 70°C temperature range
  • IP40 protection against dust and debris
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pluggable Interface Relay
Brand ABB
Contact Configuration 3CO SPDT
Contact Rating B300
Degree of Protection IP40
Function Pluggable Universal Interface Relay CR-U
Height 54.4 mm
Insulated Voltage 250 V
Length 35 mm
Operational Temperature -40 to 70 deg C
Rated Current 10 A
Rated Voltage 24 VDC
Standards and Approvals CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61810-1, UL 508
Terminal Type Pin
Weight 0.083 kg
Width 35 mm
