Specifications

Dimensions (mm)	50W x 50H x 2.5D
Reference No.	314300
Weight (kg)	0.12
Class (Lightning Current Carrying Capability) (kA)	100
Surface Protection	Hot-dip Galvanized
Conductor Diameter (mm)	8
Lightning current load-bearing capacity (10/350µs)	100
Clamping Range Rd/Rd (mm)	8-10 / 8-10
Clamping Range Rd/Fl (mm)	8-10 / 30
Clamping Range FI/Fl (mm)	30 / 30

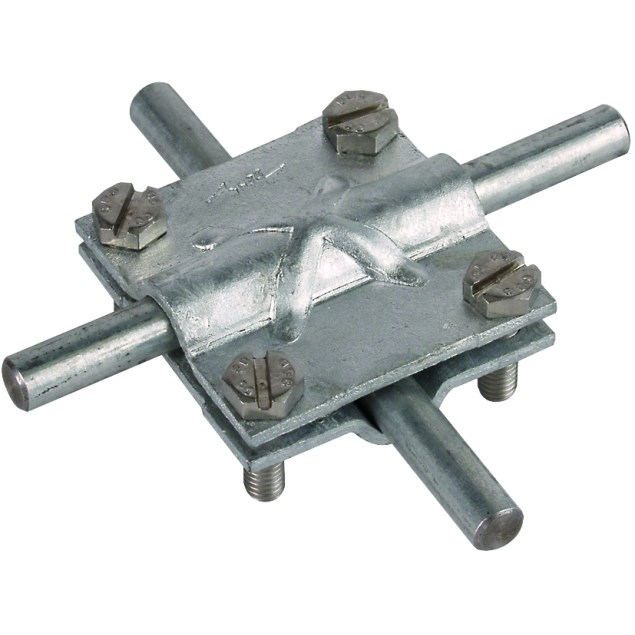

Product Type	Cross Unit
Brand	DEHN
Clamping Range	8-10 mm
Conductor Size	8 mm
Connection Type	M6 x 20 mm Screw
Connector Type	Cross Connector
Depth	2.5 mm
Finish	Hot Dip Galvanized
Height	50 mm
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	100 kA
Material	Steel
Screw Size	M6 x 20mm
Standards and Approvals	EN 62561-1
Weight	0.12 kg
Width	50 mm
