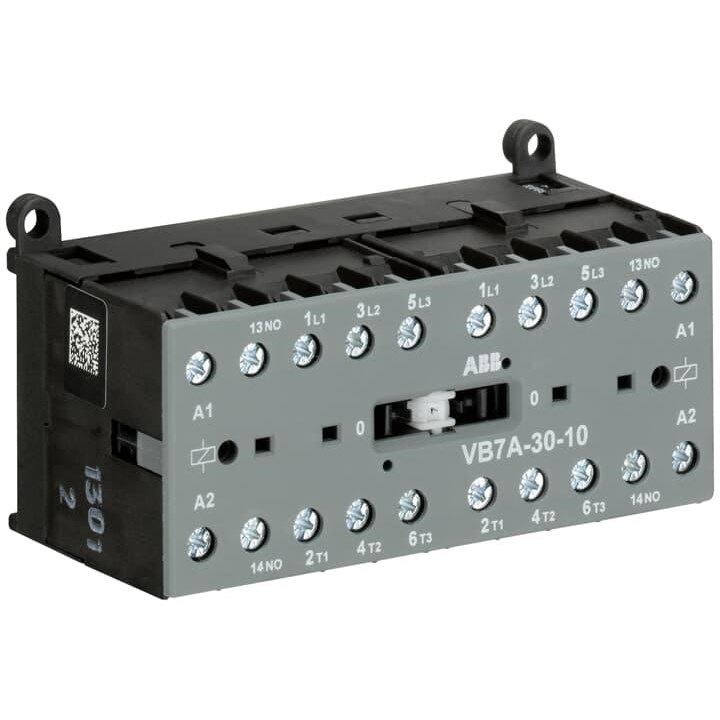

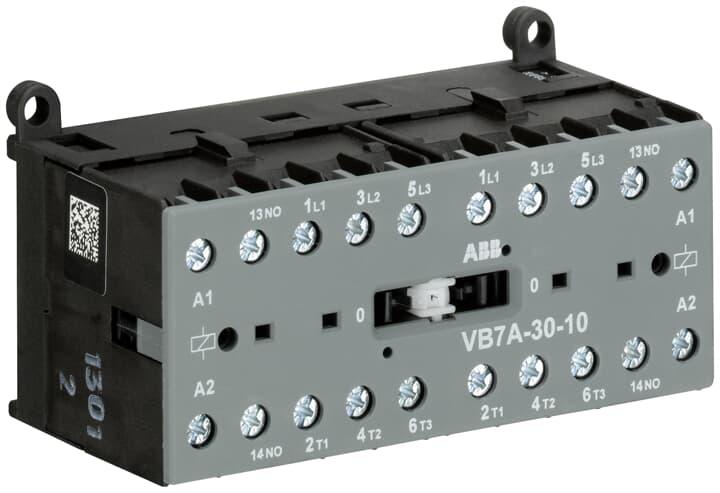

ABB VB7A301080 Mini Contactor 3P 3NO 6A 5.5kW 220-240VAC Screw Rail Mount

Product Code: VB7A301080

  • Rated Voltage: 220-240 VAC
  • Contact Config: 1NC+3NO
  • Rail mounting, compact size
  • Operates at -20 to 55°C
  • Complies with IEC/EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 3
Operating Voltage AC (V) 690
Operational Temperature Range (°C) -20 to +55
Power Loss (W) 2.0/pole 1.4/pole AC-1
Pollution Degree 3
Rated Control Supply Voltage AC (V) 220
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 690
Rated Impulse Withstand Voltage (kV) 6
Rated Control Circuit Voltage AC (V) 220 - 240
Rated Operational Voltage DC (V) 220
Rated Operational Power AC-3 400V (kW) 5.5
Rated Operational Voltage AC (V) 690
Rated Supply Voltage AC (V) 220
Auxiliary Contacts 1NO
Contacts 3NO (Main Contacts)
Dimensions (mm) 96.2W x 57.5H x 46.7D
Rated Operational Current AC-1 690V (A) 6
Rated Operational Current AC-1 240V (A) 20
NEMA Degree of Protection 1
No. of Normally-open Contacts 3
Main Circuit Electrical Connection Screw Connection
No. of Normally-open Auxiliary Contacts 1
Product Type Mini Contactor
Brand ABB
Actuating Voltage Type AC
Contact Configuration 1NC+3NO
Degree of Pollution IP3
Degree of Protection IP20
Depth 46.7 mm
Electrical Connection Screw
Function Reversing Contactor
Height 57.5 mm
Mounting Type Rail
Number of Poles 3
Operational Temperature -20 to 55 deg C
Power Loss 1.4-2 W
Rated Current 6 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Power 5.5 kW
Rated Voltage 220-240 VAC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Terminal Type Screw
Width 96.2 mm

Description

The VB7A-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and mechanical interlock and safety blocking. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 5.5 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
