Specifications

Dimensions (mm)	12W x 21H x 8D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	100
Nominal Voltage AC (V)	400
Reference No.	961165
No. of Conductors	1
Type	N-PE Lightning Current
Maximum Continuous Voltage AC (V)	440
Weight (kg)	0.42

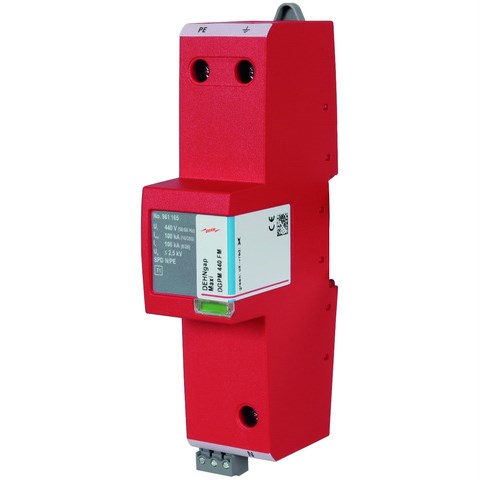

Product Type	Lightning Arrester
Brand	DEHN
Cross Section	10 sq-mm Solid/Flexible, 50 sq-mm Stranded, 35 sq-mm Flexible
Degree of Protection	IP20
Depth	36 mm
Height	90 mm
Lightning Current Carrying Capability	100 kArms
Lightning Impulse Current	100 kA
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Voltage	440 VAC
Response Time	<= 100 ns
SPD Class	Type 1, Class I
Standards and Approvals	UL
Voltage Protection Level	<=2.5 kV
Weight	372 g
Width	73 mm
