Product Code: DGAFFTV

24 VDC surge protection for sensitive equipment
Compact size: 27mm wide, fits 35mm DIN rail
Operates in extreme temps: -40 to 80°C
Compliant with IEC and EN 61643-21 standards
Metal construction ensures durability

Specifications

Article No.	909703
Dimensions (mm)	0.08W x 0.09L x 0.03D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	0.2
Maximum Continuous Operating Voltage MCOV DC (V)	24
Nominal Discharge Current (8/20µs) - In (kA)	1.5
SPD Type	Type 3 (P1)
Voltage Protection Level - Up (kV)	≤ 0.3
Weight (kg)	0.23
Circuit Type	Final Sub Circuit
Product Type	Surge Arrester
Brand	DEHN
Colour	Bare Surface
Connection Type	F Socket / F Socket
Degree of Protection	IP30
Depth	59 mm
Height	90 mm
Lightning Impulse Current	0.2 kA
Material	Metal
Mounting Type	35 mm DIN Rail
Operational Temperature	-40 to 80 deg C
Rated Current	2 A
Rated Voltage	24 VDC
SPD Class	Type 3
Standards and Approvals	IEC 61643-21, EN 61643-21
Voltage Protection Level	<=230V (L-L For In C1), <=300V (UP, <=60 1 kV/µs C3 (UP)
Weight	233 g
Width	27 mm

Description

Surge arrester with F socket for remote supply for 75-ohm satellite and broadband cable systems. It fulfils the high shielding requirements of class A according to EN 50083-2. It allows space-saving installation into all common TV and satellite applications and is available with integrated measuring output for testing installations.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

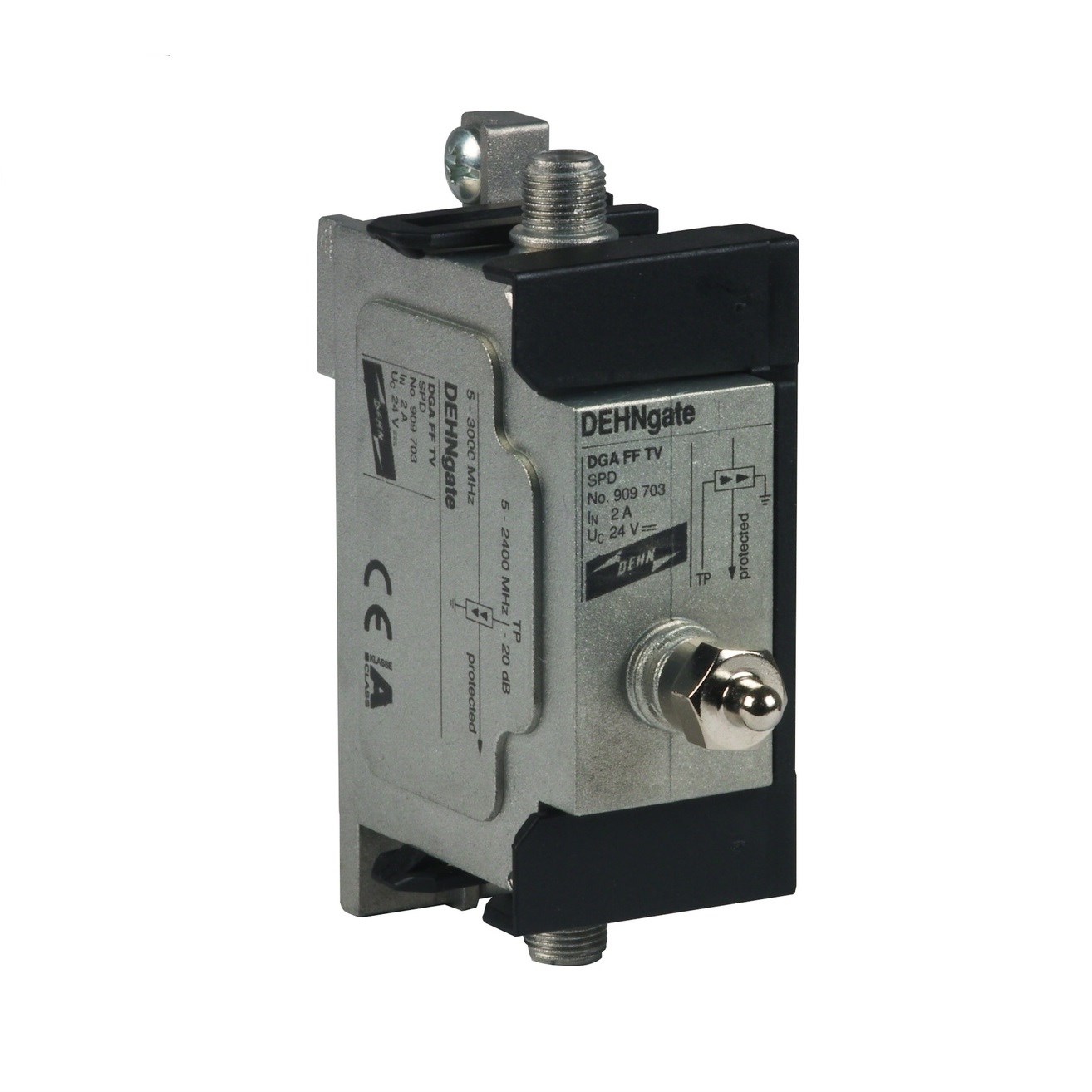

DEHN DGAFFTV Surge Arrester 0.2kA 2A 24VDC 35mm DIN Rail Metal Bare Surface IP30
