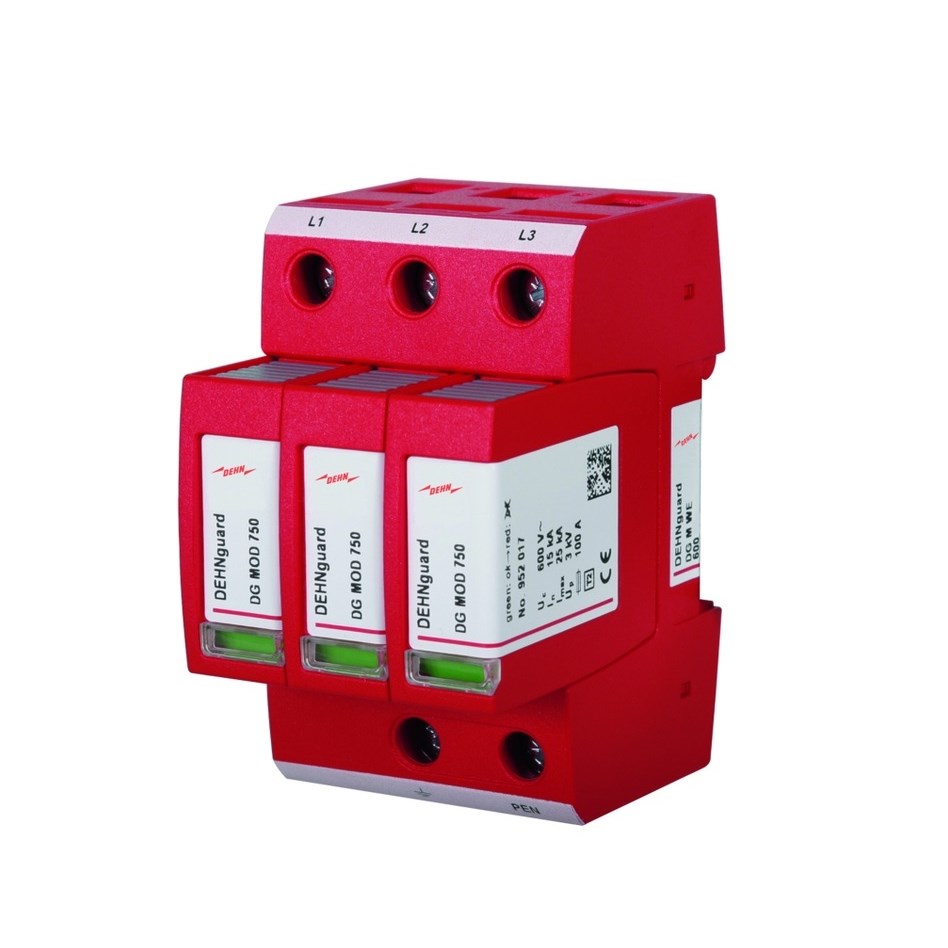

DEHN DGMWE600 M-Surge Arrester 15kA 480V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGMWE600

  • Protects up to 480 V with 15 kA current rating
  • Compact design for 35 mm DIN rail mounting
  • Fast response time of <= 25 ns
  • Operates in -40 to 80°C temperature range
  • Complies with KEMA and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Article No. 952302
Dimensions (mm) 0.07W x 0.1L x 0.06D
No. of Modules 3
No. of Poles 3P+PEN
Nominal Discharge Current (8/20µs) - In (kA) 15
Nominal Voltage AC (V) 480
SPD Type Type 2
Voltage Protection Level - Up (kV) &#8804; 3
Weight (kg) 0.41
Circuit Type DB
Response Time (ns) &#8804; 25
Operating State/Fault Indication Green/Red
Short-Circuit Withstand Capability - Iscc? (kArms) 25
Maximum Continuous Operating Voltage MCOV AC (V) 600
Maximum Discharge Current (8/20µs) - Imax (kA) 25
Product Type M-Surge Arrester
Brand DEHN
Cross Section 1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection IP20
Depth 66 mm
Height 90 mm
Interrupt Rating 100 A
Material Thermoplastic
Mounting Type 35 mm DIN Rail
Number of Ports 1
Operational Temperature -40 to 80 deg C
Rated Current 15 kA
Rated Short Circuit Current 25 kA
Rated Voltage 480 V
Response Time <= 25 ns
SPD Class Type 2, Class II
Standards and Approvals KEMA, UL
Voltage Protection Level <=3 kV
Weight 386 g
Width 54 mm

Description

Multipole DEHNguard M surge arrester (type 2 according to EN 61643-11) consisting of a base part and plug-in protection modules. High reliability due to Thermo Dynamic Control SPD monitoring device. For protecting low-voltage consumer&#180;s installations against surges.
