Specifications

Dimensions (mm)	18W x 90H x 66D
Nominal Voltage DC (V)	500
Nominal Discharge Current (8/20µs) - In (kA)	10
Nominal Voltage AC (V)	230
Reference No.	952089
Suitable For	Power Supply Systems
Weight (kg)	0.13
Breaking Capacity AC (kA)	25
Maximum Discharge Current (8/20µs) - Imax (kA)	20
No. of Conductors	1
Mounting Method	DIN Rail 35mm
Maximum Continuous Voltage DC (V)	500
Maximum Continuous Voltage AC (V)	385

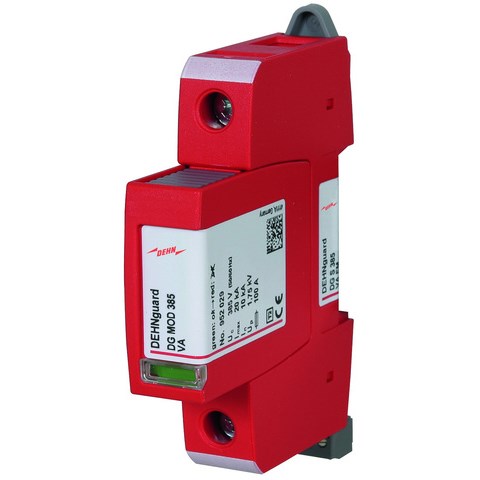

Product Type	Surge Arrester
Brand	DEHN
Cross Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection	IP20
Depth	66 mm
Height	90 mm
Interrupt Rating	100 A
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Current	10 kA
Rated Short Circuit Current	25 kA
Rated Voltage	230 V
Response Time	<= 100 ns
SPD Class	Type 2
Standards and Approvals	EN 61643-11
Voltage Protection Level	<=1.75 kV
Weight	121 g
Width	18 mm
