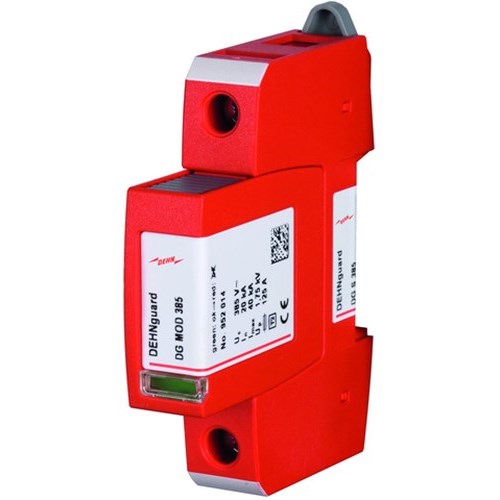

DEHN DGS385 Surge Arrester 20kA 230V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGS385

  • Protects with 20 kA surge current capacity
  • Compact design: 18 mm width, DIN rail mount
  • Fast response time of <= 25 ns
  • Operates in extreme temps: -40 to 80°C
  • Complies with KEMA, VDE, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 18W x 90H x 66D
Maximum Discharge Current (8/20µs) - Imax (kA) 40
Nominal Discharge Current (8/20µs) - In (kA) 20
Nominal Voltage AC (V) 230
Reference No. 952074
Suitable For Power Supply Systems
Weight (kg) 0.123
Breaking Capacity AC (kA) 25
No. of Conductors 1
Mounting Method DIN Rail 35mm
Maximum Continuous Voltage DC (V) 500
Maximum Continuous Voltage AC (V) 385
Product Type Surge Arrester
Brand DEHN
Cross Section 1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection IP20
Depth 66 mm
Height 90 mm
Interrupt Rating 125 A
Material Thermoplastic
Mounting Type 35 mm DIN Rail
Number of Ports 1
Operational Temperature -40 to 80 deg C
Rated Current 20 kA
Rated Short Circuit Current 25 kA
Rated Voltage 230 V
Response Time <= 25 ns
SPD Class Type 2
Standards and Approvals KEMA, VDE, UL, CSA
Voltage Protection Level <=1.75 kV
Weight 123 g
Width 18 mm
