Specifications

Dimensions (mm)	73W x 90H x 18D
Nominal Voltage DC (V)	100
Nominal Discharge Current (8/20µs) - In (kA)	10
Nominal Voltage AC (V)	60
Reference No.	952080
Suitable For	Power Supply Systems
Weight (kg)	0.107
Breaking Capacity AC (kA)	25
Maximum Discharge Current (8/20µs) - Imax (kA)	20
No. of Conductors	1
Weight (g)	118
Mounting Method	DIN Rail 35mm
Maximum Continuous Voltage DC (V)	100
Maximum Continuous Voltage AC (V)	75

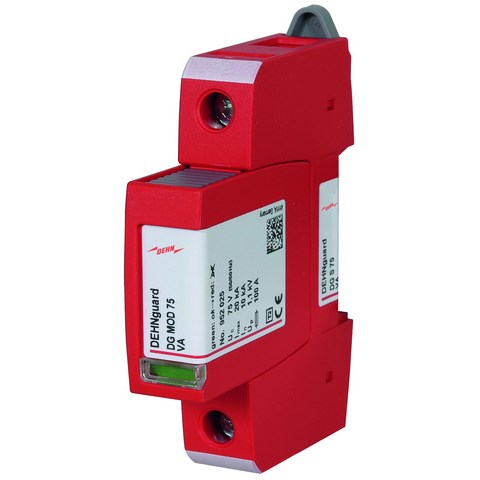

Product Type	Surge Arrester
Brand	DEHN
Cross Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection	IP20
Depth	66 mm
Height	90 mm
Interrupt Rating	100 A
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Current	10 kA
Rated Short Circuit Current	25 kA
Rated Voltage	60 V
Response Time	<= 100 ns
SPD Class	Type 2
Standards and Approvals	EN 61643-11
Voltage Protection Level	<=1.1 kV
Weight	107 g
Width	18 mm
