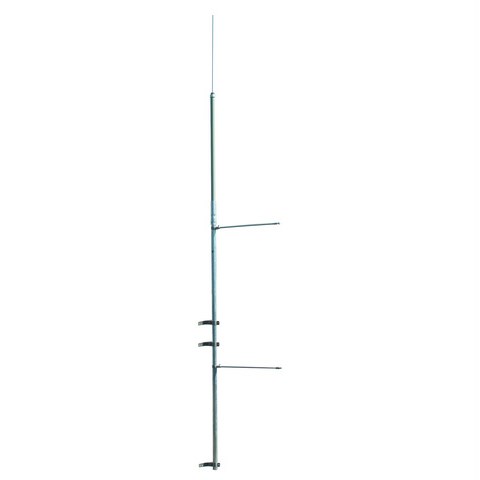

DEHN 105455 Combi Air-Termination Rod With Mount Bracket 10mm Dia Round 5700mm L SS Aluminium GRP

Product Code: 105455

  • Isolated lightning protection system
  • Round conductor connection type
  • Durable stainless steel and aluminium build
  • Operates in -50 to 100°C temperature range
  • Complies with DIN EN 62305-3 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -50 °C to +100 °C
Diameter (mm) 10
Dimensions (mm) 16W x 475H x 10D
Length (mm) 5700
Weight (kg) 11.45
Type Air Termination Rods
Surface Protection Untreated
Max. Gust Wind Speed (km/h) 206
Length of Air-Termination Rod (mm) 1000
Product Type Combi Air-Termination Rod With Mounting Bracket
Brand DEHN
Ambient Temperature -50 to 100 deg C
Connection Type Round Conductor
Depth 10 mm
Finish Untreated
Height 475 mm
Length 5700 mm
Material Stainless Steel, Aluminium, Hot Dip Galvanized Steel, GRP
Model Interception rod
Size 10 mm
Standards and Approvals DIN EN 62305-3, DIN IEC/TS 62561-8, VDEV 0185-561-8
Weight 11.45 kg
Width 16 mm
