Specifications

IEC - Rated Operational Power AC-3 500V (kW)	7.5
IEC - Rated Operational Power AC-3 380-400V (kW)	5.5
IEC - Rated Operational Power AC-3 220-240V (kW)	3
Maximum Current ? = 40 °C 400V (A)	12
No. of Poles	3
No. of Positions	2
Rated Control Supply Voltage AC (V)	24 - 60
Dimensions (mm)	107W x 230H x 131D
NEMA Degree of Protection	4X
Cable Entry (mm)	20
Product Type	Enclosed DOL Starter
Brand	ABB
Auxiliary Circuit Connecting Capacity	Flexible with Ferrule 1/2 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 1 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 2 x 0.75-1.5 sq-mm, Rigid Solid 1/2 x 1-2.5 sq-mm, Rigid Stranded 1/2 x 1-2.5 sq-mm
Cable Entry	20 mm
Colour	White
Degree of Pollution	IP3
Depth	131 mm
Height	230 mm
Housing Material	Plastic
NEMA Rating	NEMA 4X
Number of Command Positions	2
Number of Poles	3
Rated Current	12 A
Rated Frequency	50/60 Hz
Rated Power	5.5 kW
Rated Voltage	24-60 VAC
Width	107 mm

Description

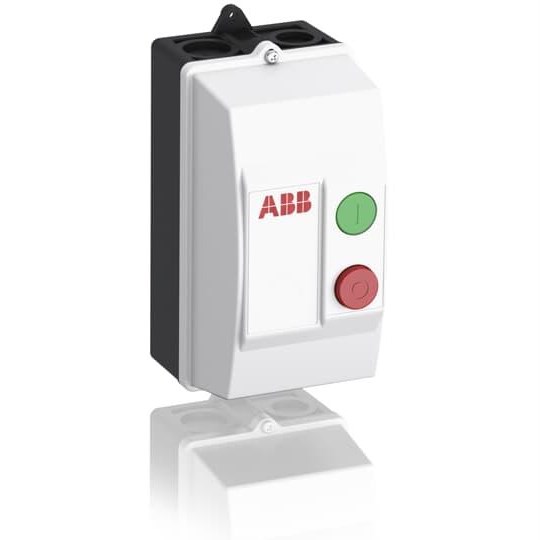

DRAF12-11S 24-60V50/60HZ enclosed Direct-On-Line starter with AF contactors
