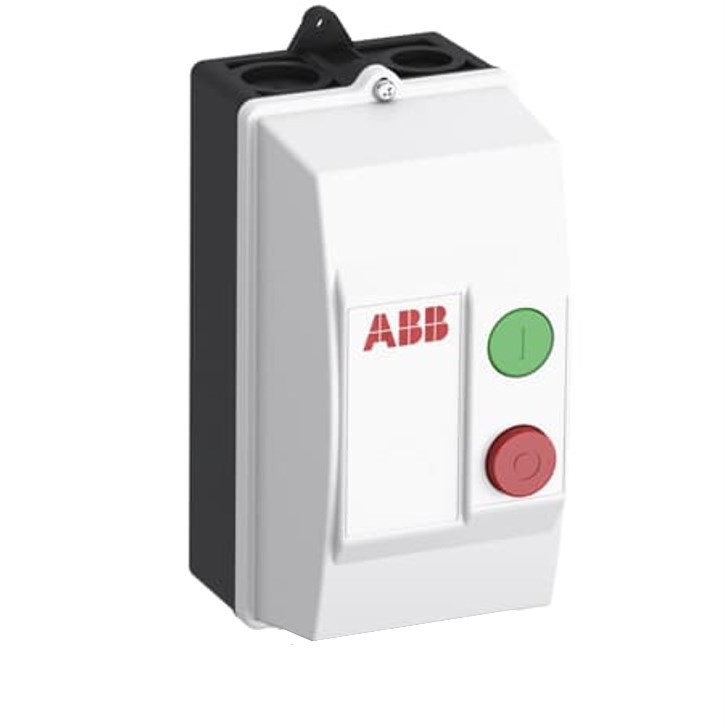

ABB DRAF16-14P Enclosed DOL Starter 4kW 250-500VAC 18A

Product Code: DRAF16-14P

  • Enclosed DOL Starter, 250-500 VAC, 18 A
  • Compact size: 107x230x131 mm
  • ABS housing in white finish
  • Rated power of 4 kW
  • Screw terminal connections
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 107W x 230H x 131D
IEC - Rated Operational Power AC-3 500V (kW) 9
IEC - Rated Operational Power AC-3 380-400V (kW) 7.5
IEC - Rated Operational Power AC-3 220-240V (kW) 4
Maximum Current ? = 40 °C 400V (A) 18
No. of Poles 3P
Rated Control Supply Voltage AC (V) 250 - 500
Product Type Enclosed DOL Starter
Brand ABB
Auxiliary Circuit Connecting Capacity Flexible with Ferrule 1/2 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 1 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 2 x 0.75-1.5 sq-mm, Rigid Solid 1/2 x 1-2.5 sq-mm, Rigid Stranded 1/2 x 1-2.5 sq-mm
Colour White
Contact Configuration 0NC+1NO
Control Circuit Connecting Capacity Flexible with Ferrule 1/2 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 1 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 1 x 0.75-1.5 sq-mm, Rigid Solid 1/2 x 1-2.5 sq-mm, Rigid Stranded 1/2 x 1-2.5 sq-mm
Degree of Pollution IP3
Depth 131 mm
Height 230 mm
Housing Material ABS
Main Circuit Connecting Capacity Flexible with Ferrule 1/2 x 0.75-6 sq-mm, Flexible with Insulated Ferrule 1 x 0.75-4 sq-mm, Flexible with Insulated Ferrule 2 x 0.75-2.5 sq-mm, Rigid Solid 1/2 x 1-4 sq-mm, Rigid Stranded 1/2 x 1-6 sq-mm
Number of Poles 3
Rated Current 18 A
Rated Frequency 50/60 Hz
Rated Power 4 kW
Rated Voltage 250-500 VAC
Terminal Type Screw
Width 107 mm

Description

The DOL Motor Starter is a reliable and easy-to-install device designed for motor starting. It features a white housing made of ABS material. With 4 cable entries and a 3-pole AF Contactor, this starter provides efficient connectivity. It has a rated operational power of 7.5kW at 380/400V AC-3 and a control voltage range of 24 to 60V (50/60Hz). The starter also includes clear indication lights, with a green "I" indicating ON and a red "0" indicating OFF/RESET.
