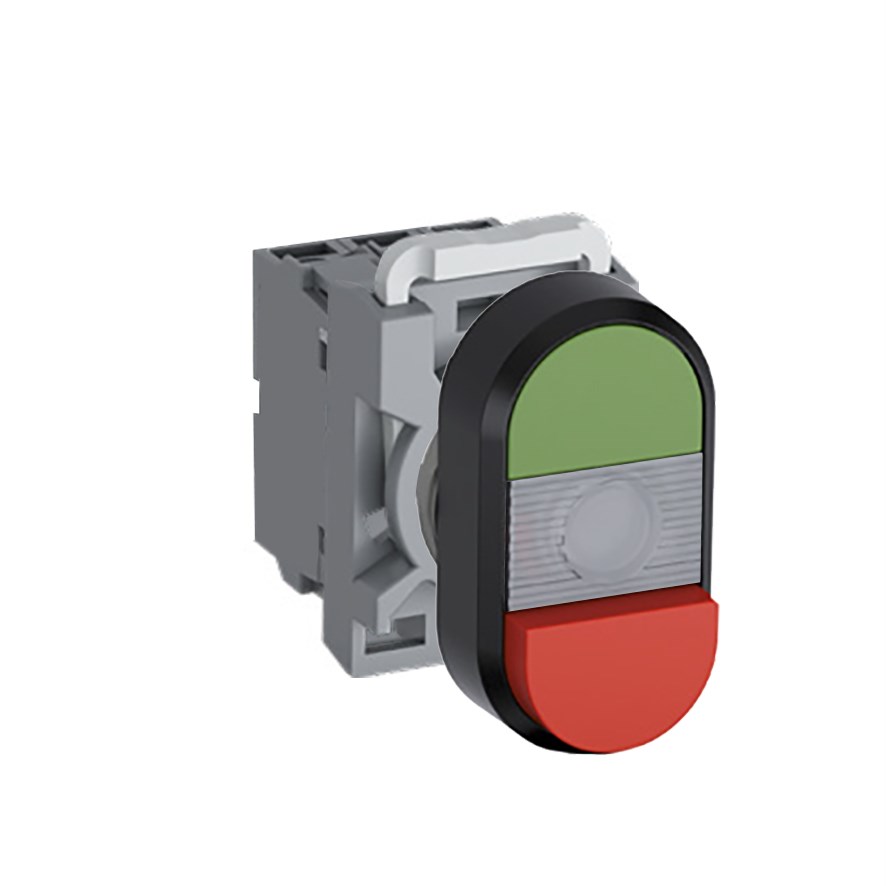

ABB MPDIECGR111 Illuminated Double Pushbutton Kit Flush/Extended Clear Green/Red 24VAC/DC 1NO+1NC LED Block

Product Code: MPDIECGR111

  • Illuminated pushbutton with LED lamp
  • IP66 front protection, suitable for harsh environments
  • Operates at 24 VAC/DC, ideal for industrial use
  • Dual-color button: green upper, red lower
  • Suitable for mining and construction industries
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Frequency (Hz) 50/60
Rated Voltage AC/DC (V) 24
LED Block Rated Voltage 24VAC/DC
Upper/Lower Button Text No Text/No Text
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Clear
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Clear
Lamp Type Built-in LED
LED Colour Clear
Legend No Text
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Clear Indicator is a versatile and convenient solution for engineers. It operates on 24VAC/DC power and features an upper-green and lower-red flush/extended design. With 1 normally open (NO) and 1 normally closed (NC) contact, this pushbutton offers reliable functionality. The kit includes an operator, contact block, and contact block holder, making it a complete package. Despite its lack of texts, this product from the Modular Plastic Range is a valuable addition to any engineering project.
