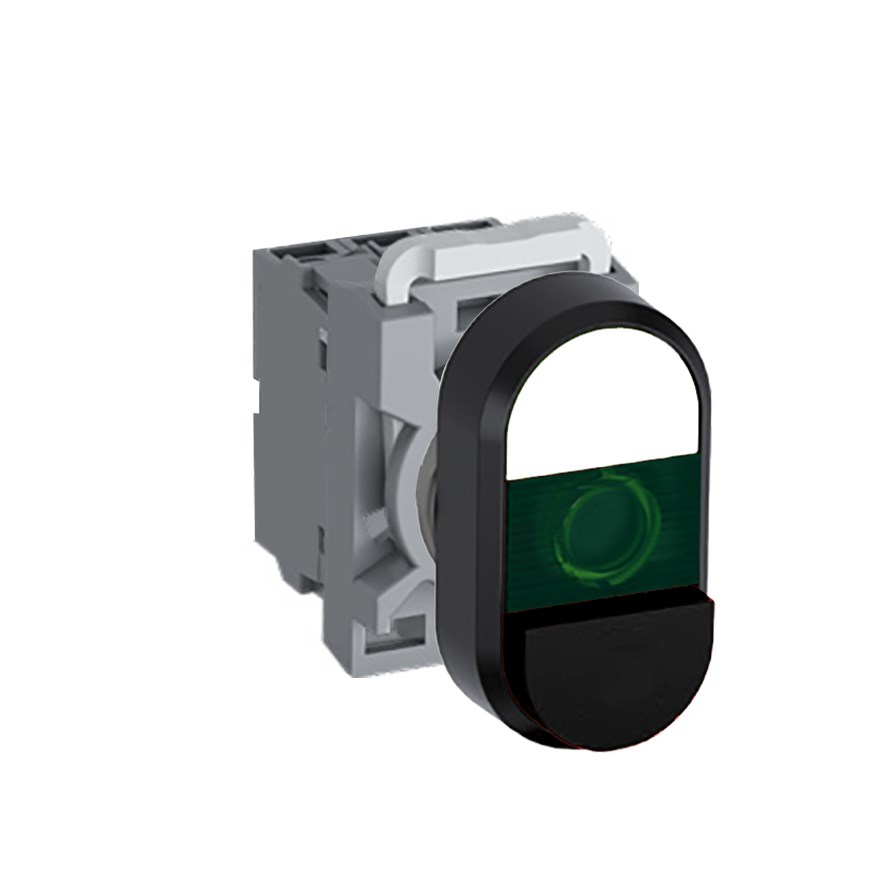

ABB MPDIEGWB011 Illuminated Double Pushbutton Kit Flush/Extended Green White/Black 12VAC/DC 1NO+1NC LED Block

Product Code: MPDIEGWB011

  • Operates at 12 VAC/DC, ideal for various setups
  • IP66 front protection, durable in harsh conditions
  • Built-in green LED illumination for visibility
  • Suitable for mining and heavy industry use
  • Compact 22 mm cutout size fits standard panels
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
LED Block Rated Voltage 12 VDC
Upper/Lower Button Text No Text/No Text
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
