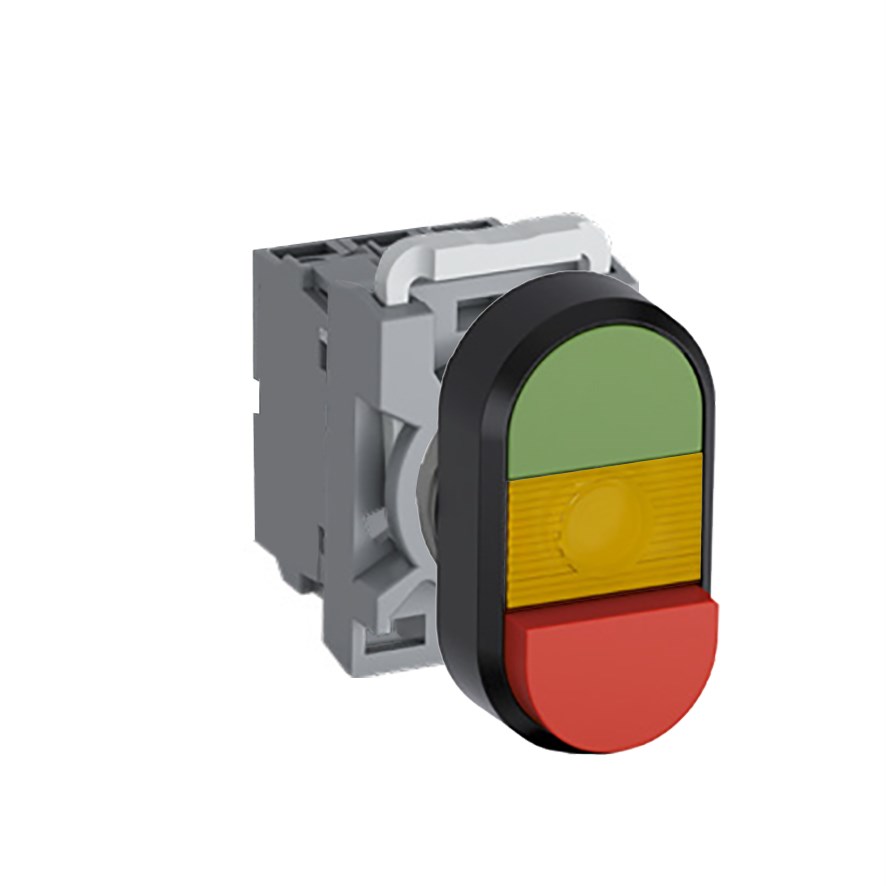

ABB MPDIEYGR611 Illuminated Double Pushbutton Kit Flush/Extended Momentary Yellow Green/Red 220VDC 1NO+1NC

Product Code: MPDIEYGR611

  • Illuminated pushbutton with built-in LED
  • IP66 front protection for harsh conditions
  • Operates at -25 to 70°C ambient temp
  • Dual colour button: Green/Red
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Voltage DC (V) 220
LED Block Rated Voltage 220 VDC
Upper/Lower Button Text No Text/No Text
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Yellow
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Yellow
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Kit is a modular plastic range product designed for momentary use. It features a flush/extended actuator with a green upper and red lower colour. The yellow indicator does not have any text. The kit includes an integrated LED in yellow and white colours, powered by 220 V DC. It has 1 normally open (NO) contact and 1 normally closed (NC) contact. The front of the kit has an IP66 rating for protection against dust and water, while the terminals have an IP20 rating.
