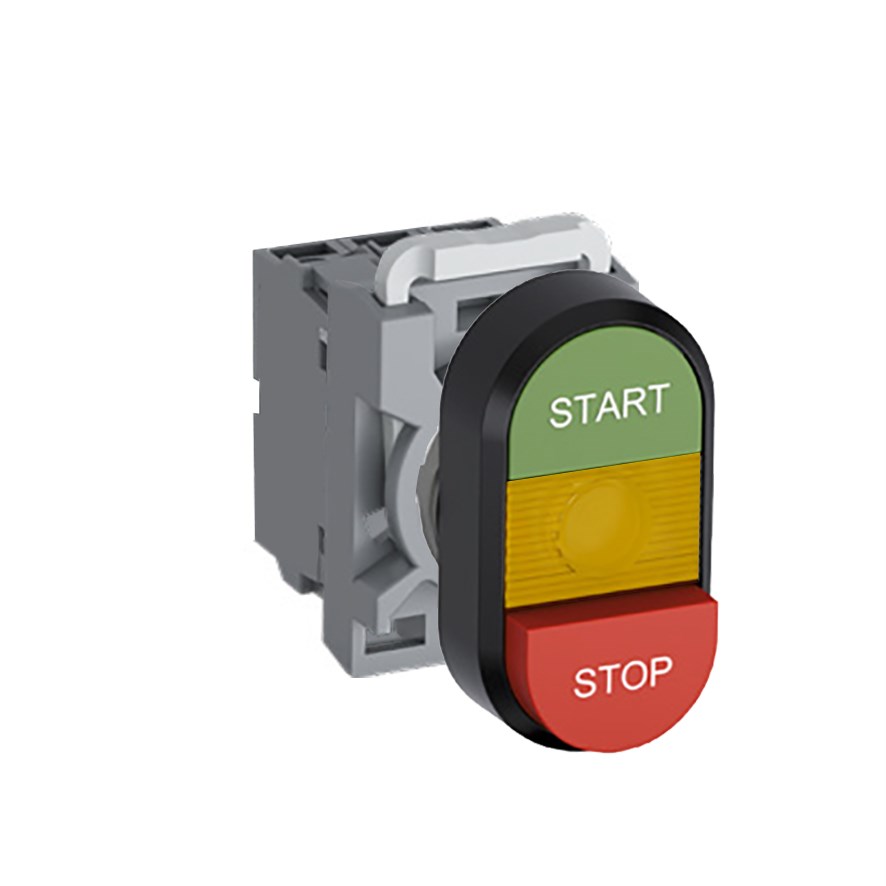

ABB MPDIEYGRS711 Illuminated Double Pushbutton Kit Flush/Extended Momentary Ylw Start/Stop Grn/Red 230VAC 1NO+1NC

Product Code: MPDIEYGRS711

  • Illuminated pushbutton with built-in LED
  • IP66 front protection for harsh environments
  • Operates at 230 VAC/DC, 10 A thermal current
  • Dual function: Start/Stop, Green/Red buttons
  • Suitable for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Voltage AC (V) 230
LED Block Rated Voltage 230 VAC
Upper/Lower Button Text START/STOP
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Yellow
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Yellow
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Kit is a modular plastic range product designed for momentary use. It features a flush/extended actuator with a green upper button for start functionality and a red lower button for stop functionality. The kit also includes a yellow indicator with text. The integrated LED is yellow in colour and operates on 230 V AC power. The pushbutton has 1 normally open (NO) contact and 1 normally closed (NC) contact. It has an IP66 rating for the front panel and an IP20 rating for the terminals.
